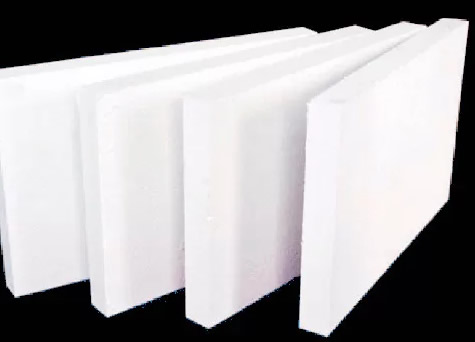

White Ceramic Fiber Board , Ceramic Alumina Fiber Board For Furnace Chamber
- Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:10000 pcs per month
MAX. TEMPERATURE:1800℃DENSITY:320-600 Kg/m3
COLOR:WhiteITEM:Ceramic Fiber Board
HIGH LIGHT:ceramic fiber insulation board, fireproof fiber board
High Density Alumina Ceramic Fiber Insulation Board, Ceramic Fiber Insulation for Furnace Chamber
Facerom ceramic fiber board is made of high purity alumina fibrous and alumina powder, to be formed and fired in special equipment with the advanced patent process, can withstand temperature up to 1700 Celsius.
Smooth surface.
Average thickness and density.
Excellent mechanism and structural strength.
Low thermal conductivity and less shrinkage Super light weight.
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:10000 pcs per month
MAX. TEMPERATURE:1800℃DENSITY:320-600 Kg/m3
COLOR:WhiteITEM:Ceramic Fiber Board
HIGH LIGHT:ceramic fiber insulation board, fireproof fiber board
High Density Alumina Ceramic Fiber Insulation Board, Ceramic Fiber Insulation for Furnace Chamber
Facerom ceramic fiber board is made of high purity alumina fibrous and alumina powder, to be formed and fired in special equipment with the advanced patent process, can withstand temperature up to 1700 Celsius.
Smooth surface.
Average thickness and density.
Excellent mechanism and structural strength.
Low thermal conductivity and less shrinkage Super light weight.
High Density Alumina Ceramic Fiber Insulation Board Product Types
| Type | FGL-1000 | FGL-1260 | FGL-1400 | FGL-1600 | FGL-1700 | FGL-1800 |
| Classification temperature | 1000 | 1260 | 1400 | 1600 | 1700 | 1800 |
| density (Kg/m3) | 200-600 | 200-600 | 200-600 | 200-600 | 350-600 | 350-600 |
| Line change(.CX24hS) |
1.3 (900.C) |
1.1 (1100.C) |
1.6 (1200.C) |
<2.0 (1400.C) |
<2.0 (1500.C) |
<2.0 (1600.C) |
| compressive strength | 0.5 | 0.5 | 0.5 | 0.3 | 0.3 | 0.3 |
Alumina Ceramic Fiber Insulation Board for Furnace Chamber Standard size
25x600x900mm
40x600x900mm
30x600x900mm
50x600x900mm
100x600x900mm
High Density Alumina Ceramic Fiber Insulation Board Application
| Character | product applying |
| High-temperature steady |
Verity high-temperature industrial furnace backing heat insulation |
| low heat conductivity |
Ceramics kiln, mechanic and metallurgy heating furnace, thermal treatment furnace and other industrial furnace and hot face internal lining Low heating quantity High-temperature block-fire and flame-insulated |
| easy-mechanic processing | Kiln door, kiln car, and dilatation joint, insulation material, etc. |
| Tidy surface | Glass kiln insulation |
If you're interested in our High Density Alumina Ceramic Fiber Insulation Board, Ceramic Fiber Insulation for Furnace Chamber, contact us now to get a quote!
