Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:10000 pcs per month

MAX. TEMPERATURE:1400℃DIAMETER:8 ~ 60mm
TYPE:Stander ShapePURITY:High Purity
RESISTANCE:As Per Your Requirement

HIGH LIGHT:silicon carbide heating elements, silicon carbide heating rod

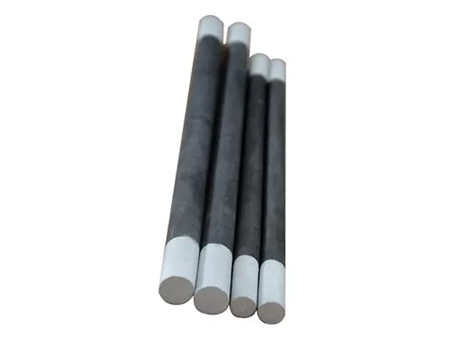

Standard Shape High Purity SiC Heating Elements, Silicon Carbide Heating Rod up to 1400℃
Standard shape (GD type).
Selecting high purity green SiC powder, to ensure the best foundation for top quality.
SiC tube is extruded by 500T press machine, to ensure high density uniform through the whole length.
Excellent resistance rate between heat zone and cold zone, to avoid over-temperature of cold zone to damage the furnace body.
Special technology to spread a protect film on the surface of the heating zone, which enhances the Antioxidant property evidently and lengthens the service life.

Application: Widely used in various high temperature electric furnaces and other electric heating devices, such as in the
industries of magnet, ceramics, powder metallurgy, glass, metallurgy, and machinery, etc.

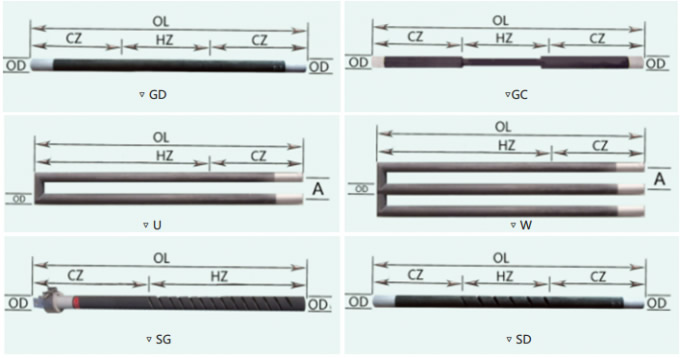

Please confirm the following data before order:
1. Type
2. Diameter: OD
3. Heating zone length: HZ
4. Cooling zone length: CZ
5. Total length: OL
6. Resistance (if you have requirement)
7. Please confirm the central distance when you need U type and W type.

If you're interested in our Standard Shape High Purity SiC Heating Elements, Silicon Carbide Heating Rod up to 1400℃, contact us now to get a quote!
