Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL1700 / BR1800
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:3-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:10000 pcs per month

MAX TEMPERATURE:1700°C / 1800°CSHAPE:L Shape
DIAMETER:3/6, 4/9, 6/12, 7/12, 9/18, 12/24mmHEATING ZONE LENGTH:80 - 1500
COOLING ZONE LENGTH:80 - 1500MOLYBDENUM PURITY:99.9% High Purity
HIGH LIGHT:moly disilicide heating elements, molybdenum disilicide heating elements

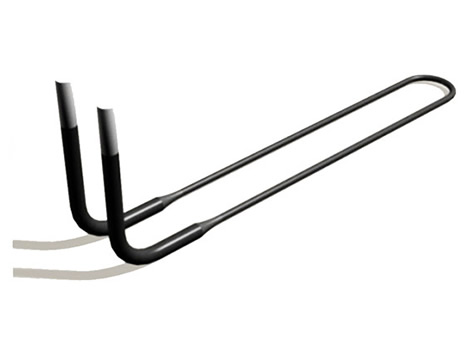

High Temperature L Shape 1800C MoSi2 Heating Elements, High Purity Molybdenum Disilicide Rod up to 1800°C
The heater has the function of antioxidant and auto repair, and suitable to different kinds of continuous working during the oxygen atmosphere.
Moulding by heat process and model size is standard, so we can produce special shape and size according to customer requirements.
Adopt a special process for joint moulding with fasten welding and strong impact resistance.
High density and excellent electrical conductivity, high heating rate, and low power consumption.
The old one and the new one could be using together.

Application: Widely used in research and production of glass, ceramic, refractory, metallurgy, steel-making, crystal, electronic parts, semiconductor material. The model including BR1700 (working temperature 1600℃) and BR1800 (working temperature 1700℃)

L Shape High Purity MoSi2 Heating Elements up to 1800°C Technical parameter

Heating zone dia. D1	Cooling zone dia. D2	Heating zone length Le	Cooling zone length Lu	Central distance A
3mm	6mm	80-300mm	80-500mm	25mm
4mm	9mm	80-350mm	80-500mm	25mm
6mm	12mm	80-800mm	80-1000mm	25-60mm
7mm	12mm	80-800mm	80-1000mm	25-60mm
9mm	18mm	100-1200mm	100-2500mm	40-80mm
12mm	24mm	100-1500mm	100-1500mm	40-100mm
Note: 1.Special size is customizable. 2.Delivery time only need 3 days for normal size
Model: BR1700 (working temperature 1600℃) and BR1800(working temperature 1700℃)

Please confirm the following data before order:
1. Type
2. Diameter: D1, D2
3. Heating zone length: Le
4. Cooling zone length: Lu
5. The distance between two terminals: A

If you're interested our High Temperature L Shape 1800C MoSi2 Heating Elements, High Purity Molybdenum Disilicide Rod up to 1800°C, contact us now to get a quote!
