4 Side Heating Bogie Hearth Furnace , PID Auto Control Carrier Electric Furnace
- Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-CFB / FMJ-CFB
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month
MAX. TEMPERATURE:1200℃CAPACITY:5625 L
LINING:Ceramic FiberHEATING SIDE:4 Side Heating
HEATING ELEMENT:High Quality Fe-Cr-Al-Mo Resistance WireCONTROL:PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
HIGH LIGHT:bogie type heat treatment furnace, car bottom furnace

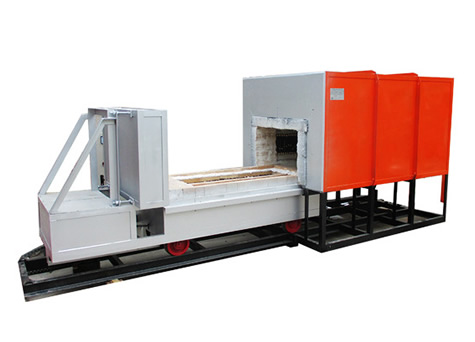

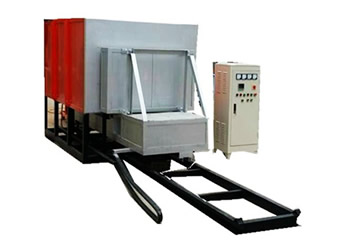

High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃
The design of High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃ is divided into two types: medium temperature (0~ 950℃) and high temperature (0~1200℃), which is mainly used for High chromium, high manganese steel castings, gray cast iron parts, ductile iron parts, rolls, steel balls, crusher hammers, wear-resistant linings quenching, annealing, aging and heat treatment of various mechanical parts.
Maximum temperature 1200℃.
All-fiber ceramic lining, high thermal efficiency, low heat loss and long lifetime.
The four-side heating device achieves excellent temperature uniformity.
Japanese ceramic nails, ensure the installation of heating elements with a long lifetime.
Build a horizontal silicon carbide plate/high temperature cast steel plate for the trolley.
Intelligent program temperature controller, which is available to edit and save the multi-segment program.
Standard Spares:
Electrical hydraulic lift furnace door.
Circulating hot air blower and thermal deflector.
Horizontal moveable auxiliary trolley.
Automatically turn-able trolley easy for quenching.
Temperature control by different zones to improve temperature uniformity.
Visualized PLC automatic control system to monitor and record in real time.
Top exhaust valve, and inlet valves on both sides.
Optional Parts:
7-inch touch screen
Furnace furniture
Software
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-CFB / FMJ-CFB
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month
MAX. TEMPERATURE:1200℃CAPACITY:5625 L
LINING:Ceramic FiberHEATING SIDE:4 Side Heating
HEATING ELEMENT:High Quality Fe-Cr-Al-Mo Resistance WireCONTROL:PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
HIGH LIGHT:bogie type heat treatment furnace, car bottom furnace
High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃
The design of High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃ is divided into two types: medium temperature (0~ 950℃) and high temperature (0~1200℃), which is mainly used for High chromium, high manganese steel castings, gray cast iron parts, ductile iron parts, rolls, steel balls, crusher hammers, wear-resistant linings quenching, annealing, aging and heat treatment of various mechanical parts.
Maximum temperature 1200℃.
All-fiber ceramic lining, high thermal efficiency, low heat loss and long lifetime.
The four-side heating device achieves excellent temperature uniformity.
Japanese ceramic nails, ensure the installation of heating elements with a long lifetime.
Build a horizontal silicon carbide plate/high temperature cast steel plate for the trolley.
Intelligent program temperature controller, which is available to edit and save the multi-segment program.
Standard Spares:
Electrical hydraulic lift furnace door.
Circulating hot air blower and thermal deflector.
Horizontal moveable auxiliary trolley.
Automatically turn-able trolley easy for quenching.
Temperature control by different zones to improve temperature uniformity.
Visualized PLC automatic control system to monitor and record in real time.
Top exhaust valve, and inlet valves on both sides.
Optional Parts:
7-inch touch screen
Furnace furniture
Software
High Temperature Electric Heated Bogie Hearth FurnaceTechnical Parameter (0～1200℃)
| Model | Chamber size (LWH)mm | Power (KW) | Dimensions (LWH)mm |
| FGL-CBF-65 | 1100×550×450 | 65 | 3100×1600×1750 |
| FGL-CBF-75 | 1300×650×450 | 75 | 3300×1700×1750 |
| FGL-CBF-110 | 1500×700×600 | 110 | 3500×1750×1900 |
| FGL-CBF-120 | 1500×800×600 | 120 | 3500×1850×1900 |
| FGL-CBF-150 | 1800×900×700 | 150 | 3800×1950×2000 |
| FGL-CBF-210 | 2100×1050×750 | 210 | 4120×2130×2110 |
| FGL-CBF-220 | 2300×1200×650 | 220 | 4320×2680×2010 |
| FGL-CBF-450 | 2500×1500×1500 | 450 |
4750×2980×2870 |
Why Facerom's Electric Heated Car Bottom Furnace up to 1200℃?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory
Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.
Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
If you're interested in our High Temperature Electric Heated Bogie Hearth Furnace, Car Bottom Furnace up to 1200℃, contact us know to get a quote!
