Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-TZH
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month


MAX. TEMPERATURE:1700℃CAPACITY:36 ~ 432L
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlAIR SYSTEM:Air Entering System Included
PREHEATING:Air Preheating System IncludedMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
HEATING SIDE:4 SidesHEATING ELEMENTT:High Quality MoSi2 Heating Elemnet
HIGH LIGHT:wax burnout furnace, electric ceramic furnace

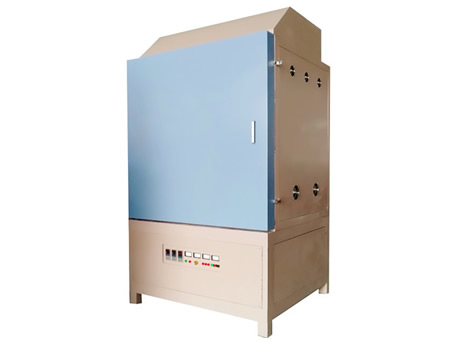

1700℃ Debinding and Sintering Integrated Furnace
High Temperature Debinding and Sintering Integrated Furnace, 1700℃ Degreasing Furnace

This furnace is mainly used in the process of casting, injection molding, 3D printing, dry pressing, advanced ceramics, metal, glass, plastic and composite materials. It can also be used for magnetic materials, ceramic chips, ferrites. Debinding and pre-burning process of magnetic sheets and other electronic components. The unique thermal field control technology ensures the uniformity of the temperature field and required for the two process stages of debinding and sintering. Up to 1700℃.

The maximum temperature is 1700℃ and the continuous temperature is 1650 ℃.
High-quality MoSi2 heating element.
4 sides heating with excellent temperature uniformity (±5°C).
The bottom platform can be pulled out by the slide rails and convenient for loading.
The bottom platform lifting adopts linear guide rail design with smooth movement.
There is a corundum mullite support pre-embedded at the plate bottom to prevent the load bearing board from sinking and deforming.

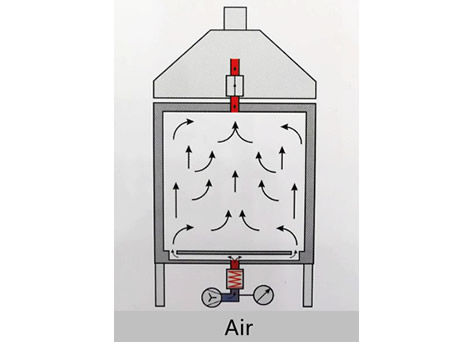

This furnace is designed with a fresh air system to ensure temperature uniformity.
At the end of the rubber discharge program, the rubber discharge port closed and the fresh air fan stopped automatically, then the program automatically enters the high temperature sintering. After the sintering finished, the exhaust port is automatically opened, and the fresh air fan starts to speed up the cooling rate when the temperature is lowered to the specified temperature.
The exhaust gas is collected by the collection cover that is discharged into the top of the furnace via the electric exhaust cover.

Standard Spares:
High-temperature gloves
Crucible clip
Operation Manual

Optional Spares:
Mullite multi-layer shelf.

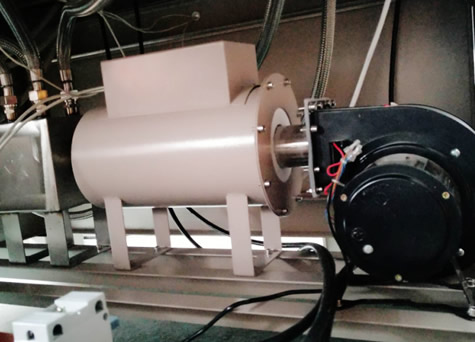

Exhaust gas pyrolysis package to pyrolyze the irritating organic matter.

Technical Parameter:

Model	Heating zone (LWH)	Temp.	Lifting method	Power	Power supply
FGL-TZH-433	400*300*300mm	1700℃	Electric screw	14KW	380V
FGL-TZH-644	600*400*400mm	1700℃	Electric screw	30KW	380V
FGL-TZH-855	800*500*500mm	1700℃	Electric screw	45KW	380V
FGL-TZH-1266	1200*600*600mm	1700℃	Electric screw	80KW	380V
