Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-TZV
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. TEMPERATURE:1600℃CAPACITY:50 - 300kgs
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlHEATING ELEMENT:Graphite Rod
INSULATION:High Purity Graphite Composite Carbon FeltATMOSPHERE:Inert Gas
MAX VACUUM:10paTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃

HIGH LIGHT:wax burnout furnace, high temperature box furnace

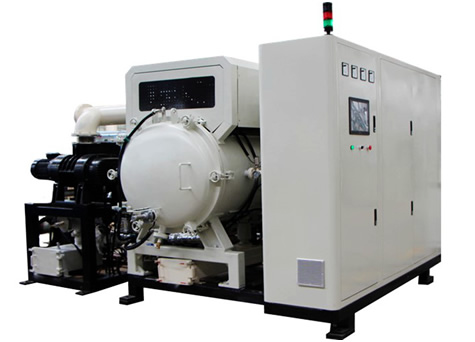

Vacuum Debinding Furnace
High Temperature Vacuum Debinding Furnace, Negative Pressure Degreasing Furnace 10 Pa

MIM (metal powder injection molding) negative pressure degreasing, degassing, high temperature sintering integrated the treatment.

The square sealing box can be installed in the furnace, on the one hand, the furnace space is more compact and the utilization rate is improved. It can also reduce the consumption of gas and heating power. The most important is to prevent degreasing volatile gas that does not pollute the inner wall of the furnace and heat insulation materials, all discharged to the furnace.
Inert gas (N2) is directly charged into the furnace chamber, and the vacuum is pre-pumped in the furnace chamber to effectively perform negative pressure degreasing.
A multi-layer graphite pad, effectively uses the furnace space for loading materials.
Heating using graphite rod, insulation using high purity graphite composite carbon felt.
The highest heating temperature can reach 1600 degrees.
Adopts slide valve pump + roots pump vacuum unit, which can pump vacuum to 10Pa in 10 minutes.

Optional accessories:
Air intake device
glass rotor flowmeter (cheap)
Mass flow meter (precise control)
Wax collection system

Technical parameters:

Model	Chamber size	Capacity	Power	Voltage	Atmosphere
FGL-TZV-334	300*300*400mm	50kgs	40KW	380V	N2/Ar
FGL-TZV-446	400*400*600mm	100kgs	80KW	380V	N2/Ar
FGL-TZV-669	600*600*900mm	300kgs	120KW	380V	N2/Ar
