Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-TZL / FMJ-TZL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. TEMPERATURE:1100℃CAPACITY:36 ~ 512L
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlAIR SYSTEM:Air Entering System Included
PREHEATING:Air Preheating System IncludedHEATING SIDE:5 Sides Heating
MAX. HEATING RATE:30°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Dewaxing
HIGH LIGHT:wax burnout furnace, high temperature box furnace

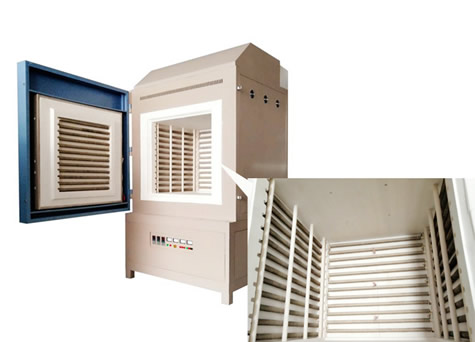

1100℃ Ceramic Dewaxing furnace, 1100C Dewaxing Box Furnace
Facerom's 1100℃ Dewaxing furnace, 1100C Dewaxing Box Furnace is mainly used in the process of ceramic dewaxing. It can also be used for magnetic materials, ceramic chips, ferrites. Debinding and pre-burning process of magnetic sheets and other electronic components. The unique thermal field control technology ensures the uniformity of the temperature field and required for the two process stages of debinding and sintering.

Molybdenum-containing resistance wire, the maximum temperature is 1100℃.
To ensure the ideal temperature field uniformity, heating in 5 sides.
In order to speed up the discharge of exhaust gas and prevent the high concentration of hydrocarbons released from the rubber discharge with the danger of explosion. This electric furnace is designed with fresh air entering the system.
In order to prevent the unevenness of thermal field temperature fluctuation by fresh air, there is a design of the fresh air preheating system and the ceramic tube homogenization system, which can greatly improve the temperature uniformity.
The exhaust gas collected to collecting cover of the furnace top through the electric exhaust cover, and collect the cooled wax.

Standard Spares:
High-temperature gloves
Crucible clip
Operation Manual

Optional Spares:
Mullite multi-layer shelf.
Exhaust gas pyrolysis package to pyrolyze the irritating organic matter.

1100℃ Ceramic Dewaxing furnace Technical Parameter:

Model	Heating zone (mm)	Temp.	Power	Votage
FGL-TZL-334	300*300*400	1100℃	12KW	380V
FGL-TZL-555	500*500*500	1100℃	25KW	380V
FGL-TZL-666	600*600*600	1100℃	36KW	380V
FGL-TZL-888	800*800*800	1100℃	64KW	380V

Why Facerom's 1100℃ Ceramic Dewaxing furnace?

Manufacturer with 10+ years' experience

Best quality

Customized design

Experienced workers

Big factory

Customers from more than 30 countries choose us

Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace

Free technical support for the lifetime

Free sample test

If you're interested in our 1100℃ Ceramic Dewaxing furnace, 1100C Dewaxing Box Furnace, contact us now to get a quote!
