Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-BL / FMJ-BL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. TEMPERATURE:1200°CCAPACITY:1 ~ 216L
FURNACE CHAMBER:High-purity Alumina FiberTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃HEATING SIDE:Four-side Heating
APPLICATION:Bottom Loading Under 1200°CHEATING ELEMENT:High Quality Heating Wire
HIGH LIGHT:industrial sintering furnace, industrial electric furnace

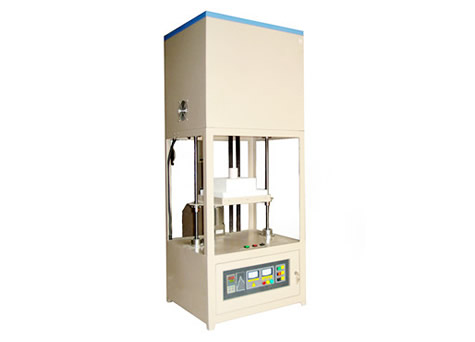

1200°C High Temperature Electric Lift-Bottom Furnace, Bottom Loading Furnace up to 1200°C

Facerom's 1200°C High Temperature Electric Lift-Bottom Furnace, Bottom Loading Furnace up to 1200°C is very convenient to load and unload, and the heating elements are distributed around the furnace evenly so that the temperature is uniform. The working temperature is from 0°C to 1200°C. The lifting platform is located under the electric furnace, which can be lifting manually or automatically. The furnace can also be made into a Bogie Hearth Furnace, which is convenient to operate. The bottom loading electric furnace is widely used for battery materials, electronic ceramics, magnetic materials, non-ferrous metals, chemical raw materials, etc. Meanwhile, it is suitable for sapphire wafer annealing and zirconia sensor heating treatment in scientific lab or universities, etc.

Operating temperature RT ~ 1200°C.
Large loading capacity, easy operation, and high efficiency,
Suitable for small workpiece high temperature heating treatment.
Four-sided heating, excellent furnace temperature uniformity (< ±5 °C).
The furnace materials use the vacuum-formed high-purity alumina fiber materials,
which can bear the high temperature, excellent heat preservation performance.
Digital intelligent temperature controller with PID control, 50-segments
programmable temperature rise curve.
Electrostatic spray shell, resistant to corrosion and acid.
Increase efficiency by built double rail trolley.

Standard Spares:
High-temperature gloves
Crucible clip
Operation Manual

Optional Spares:
RS232/RS485 software
Silicon carbide / corundum board
intake hole / exhaust hole
7 inch HD touch screen


1200°C High Temperature Electric Lift-Bottom FurnaceTechnical Parameter

Model	Max. Temp. (℃)	Chamber size (W*H*D)	Liter (L)	Power (KW)	Phase	Heating elements	Thermocouple
FGL-12BL-8	1200	200*200*200	8	5	1	Resistance wire	K type
FGL-12BL-12		200*200*300	12	6	1
FGL-12BL-27		300*300*300	27	8	1
FGL-12BL-36		300*300*400	36	10	3
FGL-12BL-64		400*400*400	64	16	3
FGL-12BL-125		500*500*500	125	25	3
FGL-12BL-216		600*600*600	216	36	3

Why Facerom's Bottom Loading Furnace up to 1200°C?

Manufacturer with 10+ years' experience

Best quality

Customized design

Experienced workers

Big factory

Customers from more than 30 countries choose us

Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace

Free technical support for the lifetime

Free sample test

If you're interested in our 1200°C High Temperature Electric Lift-Bottom Furnace, Bottom Loading Furnace up to 1200°C, contact us now to get a quote.
