Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-BL / FMJ-BL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. TEMPERATURE:1400°CCAPACITY:1 ~ 216L
FURNACE CHAMBER:High-purity Alumina FiberTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃HEATING SIDE:Four-side Heating
APPLICATION:Bottom Loading Furnace Up To 1400°CHEATING ELEMENTS:SiC Heating Elements
HIGH LIGHT:high efficiency electric furnace, industrial sintering furnace

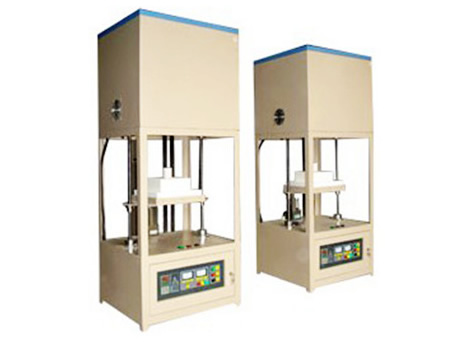

High Temperature Electric Bottom Loading Furnace Furnace, Lift-Bottom Furnace up to 1400°C

Facerom's High Temperature Electric Bottom Loading Furnace Furnace, Lift-Bottom Furnace up to 1400°C is very convenient to load and unload, and the heating elements are distributed around the furnace evenly so that the temperature is uniform. The working temperature is from 0°C to 1400°C. The lifting platform is located under the electric furnace, which can be lifting manually or automatically. The furnace can also be made into a Bogie Hearth Furnace, which is convenient to operate. The bottom loading electric furnace is widely used for battery materials, electronic ceramics, magnetic materials, non-ferrous metals, chemical raw materials, etc. Meanwhile, it is suitable for sapphire wafer annealing and zirconia sensor heating treatment in scientific lab or universities, etc.

Operating temperature RT ~ 1400°C.
Large loading capacity, easy operation, and high efficiency,
Suitable for small workpiece high temperature heating treatment.
Four-sided heating, excellent furnace temperature uniformity (< ±5 °C).
The furnace materials use the vacuum-formed high-purity alumina fiber materials,
which can bear the high temperature, excellent heat preservation performance.
Digital intelligent temperature controller with PID control, 50-segments
programmable temperature rise curve.
Electrostatic spray shell, resistant to corrosion and acid.
Increase efficiency by built double rail trolley.

Standard Spares:
High-temperature gloves
Crucible clip
Operation Manual

Optional Spares:
RS232/RS485 software
Silicon carbide / corundum board
intake hole / exhaust hole
7 inch HD touch screen

High Temperature Electric Bottom Loading Furnace Furnace 1400C Technical Parameter

Model	Max. Temp. (℃)	Chamber size (W*H*D)	Liter (L)	Power (KW)	Phase	Heating elements	Thermocouple
FGL-14BL-8	1400	200*200*200	8	5	1	Sic heating elements	S type
FGL-14BL-12		200*200*300	12	7	1
FGL-14BL-27		300*300*300	27	9	1
FGL-14BL-36		300*300*400	36	11	3
FGL-14BL-64		400*400*400	64	18	3

Why Facerom's High Temperature Electric Bottom Loading Furnace up to 1400℃?

Manufacturer with 10+ years' experience

Best quality

Customized design

Experienced workers

Big factory

Customers from more than 30 countries choose us

Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace

Free technical support for the lifetime

Free sample test

If you're interested in our High Temperature Electric Bottom Loading Furnace Furnace, Lift-Bottom Furnace up to 1400°C, contact us now to get a quote.
