Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-AN/AS/AM / FMJ-AN/AS/AM
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX TEMPERATURE:1200℃ / 1400℃ / 1700℃CAPACITY:1 ~ 64L
MAX. PRESSURE:0.1 MPaMAX. VACUUM:-0.08 Mpa
ATMOSPHERE:Inert GasTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:hydrogen atmosphere furnace, nitrogen atmosphere furnace

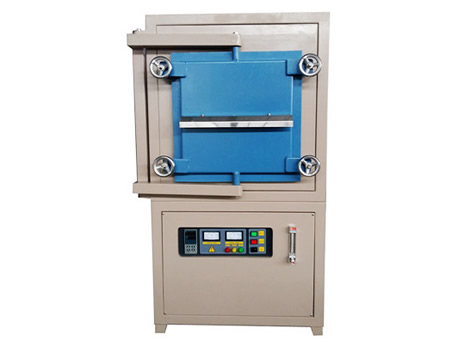

Inert Atmosphere Furnace , Nitrogen Atmosphere Furnace

This furnace is pre-vacuumed to ensure that the oxygen content in the furnace is minimized, and then nitrogen, argon or nitrogen-hydrogen is introduced to obtain the desired heating treatment under the protection of the atmosphere. Due to its excellent atmosphere and compactness, it has been widely used in material laboratories or small batch production of semiconductors, silicon nitride, and other products

The furnace is made of alumina polycrystalline fiber, and the temperature field is balanced and pollution-free.
Fully enclosed structural furnace, double-layer thickened steel plate, can bear 0.1 Mpa pressure
The top, left, right, and back are made of 12mm solid square steel for reinforcement, and the vacuum is not deformed. The maximum vacuum can be up to -0.08MPa.
Temperature controlling system adopts industrial precision 0.2-level intelligent instrument, PID adjustment, 50-segment programming
The furnace door has good sealing performance. Four hand wheels lock the furnace door and use the silicone ring to seal.

Standard accessories:
Furnace door fire brick (except 1200 type)
High temperature gloves; tongs; manual
Two pcs heating elements (except 1200 type)
Rotary vane vacuum pump

Additional accessories:
Direct-connected vacuum pump
Touch screen/computer connection software
Crucible (multi-layer kiln furniture)
Heating element (Sic and MoSi2)
Air system (float/proton flow meter, 2 / 3 channels of gas)

Technical Parameter:1200 type

Model	Max. Temp.	Chamber size	Voltage	Power
FGL-12AN-1	1200℃	100*100*100mm	220V	0.8kW
FGL-12AN-2	1200℃	120*120*130mm	220V	1.2kW
FGL-12AN-3	1200℃	150*150*150mm	220V	2.5kW
FGL-12AN-5	1200℃	150*150*200mm	220V	3kW
FGL-12AN-8	1200℃	200*200*200mm	220V	5kW
FGL-12AN-12	1200℃	200*200*300mm	220V	6kW
FGL-12AN-27	1200℃	300*300*300mm	380V	8kW
FGL-12AN-36	1200℃	300*300*400mm	380V	10kW
FGL-12AN-64	1200℃	400*400*400mm	380V	16kW



Technical Parameter:1400 type

Model	Max. Temp.	Chamber size	Voltage	Power
FGL-14AS-1	1400℃	100*100*100mm	220V	1kW
FGL-14AS-2	1400℃	120*120*130mm	220V	2kW
FGL-14AS-3	1400℃	150*150*150mm	220V	3kW
FGL-14AS-5	1400℃	150*150*200mm	220V	4kW
FGL-14AS-8	1400℃	200*200*200mm	220V	5kW
FGL-14AS-12	1400℃	200*200*300mm	220V	7kW
FGL-14AS-27	1400℃	300*300*300mm	380V	9kW
FGL-14AS-36	1400℃	300*300*400mm	380V	11kW
FGL-14AS-64	1400℃	400*400*400mm	380V	18kW



Technical Parameter:1700 type

Model	Max. Temp.	Chamber size	Voltage	Power
FGL-17AM-1	1700℃	100*100*100mm	220V	1kW
FGL-17AM-2	1700℃	120*120*130mm	220V	3kW
FGL-17AM-3	1700℃	150*150*150mm	220V	4kW
FGL-17AM-5	1700℃	150*150*200mm	220V	5kW
FGL-17AM-8	1700℃	200*200*200mm	220V	7kW
FGL-17AM-12	1700℃	200*200*300mm	220V	8kW
FGL-17AM-27	1700℃	300*300*300mm	380V	10kW
FGL-17AM-36	1700℃	300*300*400mm	380V	12kW
FGL-17AM-64	1700℃	400*400*400mm	380V	20kW

Why Us?

Manufacturer with 10+ years' experience

Best quality

Customized design

Experienced workers

Big factory

Customers from more than 30 countries choose us

Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace

Free technical support for the lifetime

Free sample test

Get a quote for Inert Atmosphere Furnace , Nitrogen Atmosphere Furnace now!
