<br />Product Details:
Place of Origin: China
Brand Name: Facerom Furnace
Certification: CE
Model Number: FGL-AN/AS/AM / FMJ-AN/AS/AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month

MAX TEMPERATURE: 1400℃ CAPACITY: 1 ~ 64L
MAX. PRESSURE: 0.1 MPa MAX. VACUUM: -0.08 Mpa
ATMOSPHERE: Inert Gas: Nitrogen, Argon TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃ HEATING ELEMENTS: SiC Heating Elements
FURNACE TYPE: N2 Gas Furnace
HIGH LIGHT: Programmable Controlled Atmosphere Furnace, N2 Gas Controlled Atmosphere Furnace, 1400 Degree Controlled Atmosphere Furnace

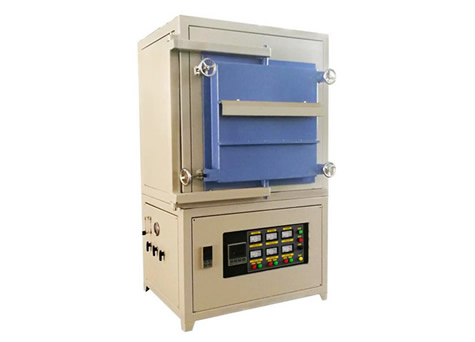

Lab Programmable Controlled Atmosphere N2 Gas Furnace up to 1400 degree

Facerom's Lab Programmable Controlled Atmosphere N2 Gas Furnace up to 1400 degree is pre-vacuumed to ensure that the oxygen content in the furnace is minimized, and then nitrogen, argon or nitrogen-hydrogen is introduced to obtain the desired heating treatment under the protection of the atmosphere. Due to its excellent atmosphere and compactness, it has been widely used in material laboratories or small batch production of semiconductors, silicon nitride, and other products

The furnace is made of alumina polycrystalline fiber, and the temperature field is balanced and pollution-free.
Fully enclosed structural furnace, double-layer thickened steel plate, can bear 0.1 Mpa pressure
The top, left, right, and back are made of 12mm solid square steel for reinforcement, and the vacuum is not deformed. The maximum vacuum can be up to -0.08MPa.
Temperature controlling system adopts industrial precision 0.2-level intelligent instrument, PID adjustment, 50-segment programming
The furnace door has good sealing performance. Four hand wheels lock the furnace door and use the silicone ring to seal.

High Temperature N2 Gas Controlled FurnaceTechnical Parameter

Model	Max. Temp.	Chamber size	Voltage	Power
FGL-14AS-1	1400℃	100*100*100mm	220V	1kW
FGL-14AS-2	1400℃	120*120*130mm	220V	2kW
FGL-14AS-3	1400℃	150*150*150mm	220V	3kW
FGL-14AS-5	1400℃	150*150*200mm	220V	4kW
FGL-14AS-8	1400℃	200*200*200mm	220V	5kW
FGL-14AS-12	1400℃	200*200*300mm	220V	7kW
FGL-14AS-27	1400℃	300*300*300mm	380V	9kW
FGL-14AS-36	1400℃	300*300*400mm	380V	11kW
FGL-14AS-64	1400℃	400*400*400mm	380V	18kW

Standard accessories:
Furnace door fire brick (except 1200 type)
High temperature gloves; tongs; manual
Two pcs heating elements (except 1200 type)
Rotary vane vacuum pump

Additional accessories:
Direct-connected vacuum pump
Touch screen/computer connection software
Crucible (multi-layer kiln furniture)
Heating element (Sic and MoSi2)
Air system (float/proton flow meter, 2 / 3 channels of gas)

Why High Temperature N2 Gas Controlled Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our Lab Programmable Controlled Atmosphere N2 Gas Furnace up to 1700 degree, contact us now to get a quote!
