Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-16AH
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX TEMPERATURE:1600℃CAPACITY:5 ~ 36L
POSITIVE INTERNAL PRESSURE:0.02MpaMAX. NEGATIVE PRESSURE:-0.1Mpa
ATMOSPHERE:HydrogenTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃HEATING ELEMENT:High Purity Molybdenum Wire
FURNACE TYPE:H2 Gas Furnace
HIGH LIGHT:H2 Gas Hydrogen Atmosphere Furnace, 36L Hydrogen Atmosphere Furnace, 1600℃ Hydrogen Atmosphere Furnace

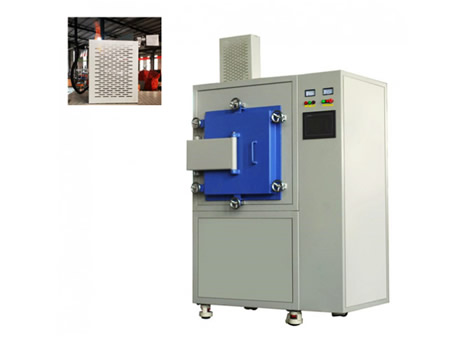

Programmable Controlled Hydrogen Atmosphere Furnace H2 Gas Furnace up to 1600 degree

This high temperature hydrogen atmosphere H2 gas furnace is specially designed for sintering or annealing materials in H2 or inert gas environment. The highest temperature can reach to 1700℃. Alumina fiber is used as furnace chamber material and Mo wire is used as the heating element. The cooling water pipe is embedded in the sealing plate at the top of the furnace body to ensure the sealing performance during working. This electric furnace is suitable for materials (such as fluorescent materials, titanium alloys, etc.) that need to be sintered in the environment of inert gas or reducing
atmosphere.

The working temperature can be adjusted at 0 ℃ ~ 1600 ℃.
Heating element: High purity molybdenum wire (molybdenum content 99.99%)
Double-layer shell structure with air-cooling and water-cooling system to maintain the positive internal pressure of 0.02MP and negative pressure up to -0.1MP.
Build a pressure sensor and a pressure controller. According to the set pressure limit, control the inlet and outlet valves to protect the high and low pressure.
The furnace body is equipped with two large-flow flowmeters (N2: 0~3.5L / min, H2: 0~3.5L / min) float flowmeter, which can freely control the gas flow.
H2 safety device: H2 tail gas is automatically ignited and burned. The flame detector will automatically ignite when the flame is extinguished. The H2 is automatically cut off when the ignition fails and then filling N2 for security.

Hydrogen Atmosphere Furnace H2 Gas Furnace Technical Parameter:

Warning: You must ensure that a qualified hydrogen detector is installed to alert you to a hydrogen leak.

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

Contact us now to get a quote for Programmable Controlled Hydrogen Atmosphere Furnace H2 Gas Furnace up to 1600 degree.
