Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-NT/ST/MT / FMJ-NT/ST/MT
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX TEMPERATURE:1200℃ / 1400℃ / 1600℃HEATING ZONE:2 - 5 Zones
VACUUM:-0.1MPaFLANGE:304 Stainless Steel Sealing Flange
OVER-TEMPERATURE PROTECTION:Automatic Power-off When The Temperature Exceeds The Allowable Set ValueSAFETY PROTECTION:Automatically Power Off When The Furnace Body Leaks
FURNACE STRUCTURE:Double Layer Steel Dual Cooling Fan, Surface Temperature Below 50℃MAX HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
TEMPERATURE CONTROL:50 Segments Programmable And Auto Control
HIGH LIGHT:rotating tube furnace, graphite tube furnace

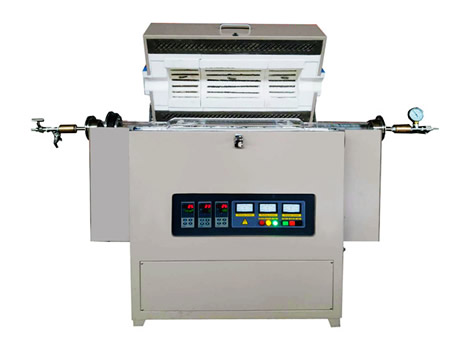

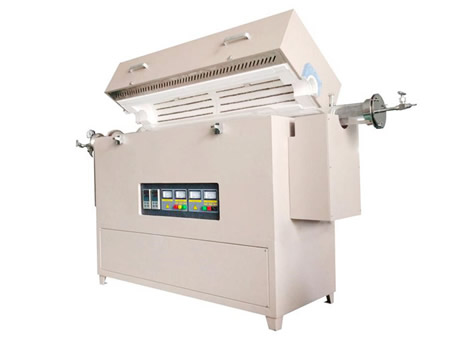

High Temperature Multi-Zone Tube Furnace, 2 3 4 5 Zones Tube Furnace 1200℃ 1400℃ 1600℃

According to a different temperature, the furnace tube is high pure quartz or alumina, assembled with vacuum sealing flange. The furnace can heat or quench samples fast under vacuum or flowing inert gas situation. It is an ideal furnace for making quenching tests and temperature measurements. Plus 2-5 multi heating zone, each working zone can control separately.

Adopt high purity alumina tube and quartz tube, working temperature from 300-1600℃, adopt advanced temperature control system, easy operation, high temperature accuracy,efficient heat-insulation effect, high temperature uniformity,mainly used for labs of university, research center and production enterprise etc.
Multi-zone heating furnace (2 zones, 3 zones, 5 zones)
Each working zone can control separately
Mainly used for sintering, coating, thermal decomposition, CVD process under vacuum or gas environment

Standard Spares:
Plugging tube 4 pcs
Furnace tube 1 pc
Vacuum pump 1 pc
Vacuum sealing flange 2 sets
Vacuum gauge 1 pc

Optional Spares:
Vacuum system (Rotary vane vacuum pump, Diffusion pump, Molecular pump)
Atmosphere system (Float flow meter, Mass flow meter)
Quick release flange, Three-way flange
7 inch HD touch scree


High Temperature Multi-Zone Tube Furnace Technical Parameter:

Model	Tube outer dia x Heating zone length	Power (KW)	Max working temperature	Heating zone	Thermocouple	Tube material	Heating element
FGL-12NT-40/220-2	40x220x220mm	5 KW	1200oC	2 zones	K type	Quartz tube	Fe-Cr-Al-Mo wire
FGL-12NT-60/220-2	60x220x220mm	5 KW
FGL-12NT-80/220-2	80x220x220mm	6 KW
FGL-12NT-100/300-2	100x300x300mm	12 KW
FGL-12NT-120/300-2	120x300x300mm	12 KW



Model	Tube outer dia x Heating zone length	Power	Max working temperature	Heating zone	Thermocouple	Tube material	Heating element
FGL-14ST-40/220-2	40x220x220mm	5 KW	1400oC	2 zones	S type	Alumina tube	SiC heating element
FGL-14ST-60/220-2	60x220x220mm	5 KW
FGL-14ST-80/220-2	80x220x220mm	6 KW
FGL-14ST-100/300-2	100x300x300mm	12 KW
FGL-14ST-120/300-2	120x300x300mm	12 KW



Model	Tube outer dia x Heatingzone length	Power	Max working temperature	Heating zone	Thermocouple	Tube material	Heating element
FGL-16MT-40/220-2	40x220x220mm	6 KW	1600	2 zones	B type	Alumina tube	MoSi2 heating element
FGL-16MT-60/220-2	60x220x220mm	6 KW
FGL-16MT-80/220-2	80x220x220mm	6 KW
FGL-16MT-100/300-2	100x300x300mm	12 KW
FGL-16MT-120/300-2	120x300x300mm	12 KW

Why Facerom's High Temperature Multi-Zone Tube Furnace, 2 3 4 5 Zones Tube Furnace?

Manufacturer with 10+ years' experience

Best quality

Customized design

Experienced workers

Big factory

Customers from more than 30 countries choose us

Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace

Free technical support for the lifetime

Free sample test
