Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12NRT / FMJ-12NRT
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX TEMPERATURE:1200℃VACUUM:-0.1MPa
FLANGE:304 Stainless Steel Sealing FlangeOVER-TEMPERATURE PROTECTION:Automatic Power-off When The Temperature Exceeds The Allowable Set Value
SAFETY PROTECTION:Automatically Power Off When The Furnace Body LeaksFURNACE STRUCTURE:Double Layer Steel Dual Cooling Fan, Surface Temperature Below 50℃
MAX HEATING RATE:20°C /minTEMPERATURE ACCURACY:±5℃
TEMPERATURE CONTROL:50 Segments Programmable And Auto Control
HIGH LIGHT:graphite tube furnace, quartz tube furnace

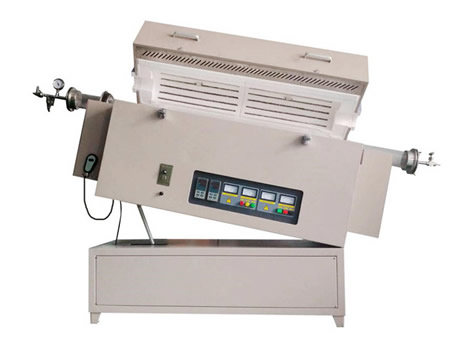

High Temperature Rotary Tube Furnace, 1200℃ Rotating Tube Furnace, 3-7 RPM

FGL-12RTF High Temperature Rotary Tube Furnace, 1200℃ Rotating Tube Furnace, 3-7 RPM is designed for calcining inorganic compound with better uniformity, especially excellent for preparing Li-Ion battery cathode materials with a conductive coating, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory.

Max temperature 1200 ℃
50 segments programmable and PID auto control
Heating rate: 0~20 ℃/min
Temperature accuracy: ±1 ℃
Upper open furnace cover design for real-time observation of heated materials
Furnace tilt angle 0 - 30℃ variable, it’s convenient for loading and unloading material

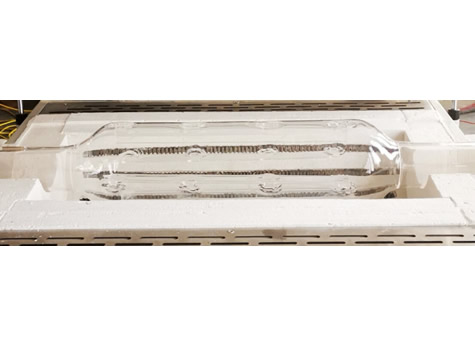

Tube rotating Speed 3 - 7 RPM variable ( reversible), and there are 3 quartz lifting plates on the inner wall of the tube. When rotating, the material is fully turned over and evenly heated.
It has safe operation functions such as opening and closing power, over temperature alarm and leakage protection

High Temperature Rotary Tube Furnace Technical Parameter:

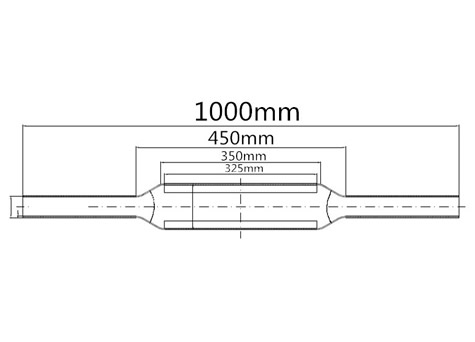

Model	Tube size (Thin end dia meter*Heating zone length)	Thick end diameter	Power	Max working temperature	Thermocouple	Tube material	Heating element
FGL-12NRT-60/300	60x300mm	120mm	3 KW	1100oC	K type	Quartz tube	Fe-Cr-Al-Mo wire
FGL-12NRT-60/450	60x450mm		5 KW
FGL-12NRT-80/300	80x300mm	150mm	3 KW
FGL-12NRT-80/450	80x450mm		5 KW
FGL-12NRT-100/300	100x300mm	180mm	5 KW
FGL-12NRT-100/450	100x450mm		7 KW
FGL-12NRT-150/300	150x300mm	200mm	7KW
FGL-12NRT-150/450	150x450mm		9 KW
