Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-PECVD
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX TEMPERATURE:1200℃NORMAL VACUUM:-0.1MPa
MAX VACUUM:Configuration Molecular Pump, Vacuum 7x10-4 Pa (Optional)FLANGE:304 Stainless Steel Sealing Flange
OVER-TEMPERATURE PROTECTION:Automatic Power-off When The Temperature Exceeds The Allowable Set ValueSAFETY PROTECTION:Automatically Power Off When The Furnace Body Leaks
FURNACE STRUCTURE:Double Layer Steel Dual Cooling Fan, Surface Temperature Below 50℃MAX HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
TEMPERATURE CONTROL:50 Segments Programmable And Auto ControlFURNACE TUBE:Quartz Tube
APPLICATION:PECVD
HIGH LIGHT:rotating tube furnace, quartz tube furnace

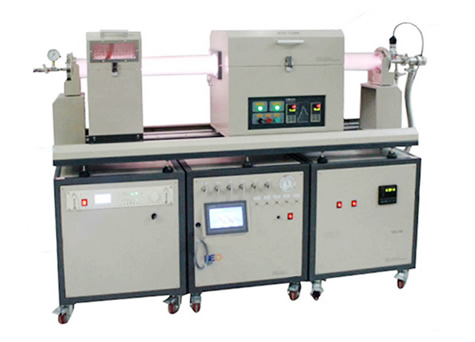

1200C Max. Lab PECVD Tube Furnace with Gas Delivery & Vacuum Pump

Intelligent PECVD Introduction:
PECVD system is designed to decrease reaction temperature of traditional CVD. It installed RF induction equipment in front of traditional CVD to ionize reacting gas, so plasma is generated. Plasma's high activity is Reaction is accelerated due to the high activity of plasma. So, this system is called PECVD.
This model is the newest product, it synthesized the advantages of most tube PECVD system, and added pre-heating zone in the front of PECVD system. Tests showed that the deposition speed is quicker, film quality is better, holes is less, and won't crack. AISO fully automatic intelligent control system is independently designed by our company, it is more convenient to operate and its function is more powerful.
Wide application range: metal film, ceramic film, composite film, continuous growth of various films.Easy to increase function, can expand plasma cleaning etch and other functions

Main Feature:
High film deposition rate: RF glow technology, greatly increasing the deposition rate of the film, the deposition rate can reach 10Å / S
High area uniformity: Advanced multi-point RF feeding technology, special gas path distribution and heating technology, etc., make the film uniformity index reach 8%
High consistency: using the advanced design concept of the semiconductor industry, the deviation between the substrates of one deposition is less than 2%
High process stability: Highly stable equipment ensures continuous and stable process

Standard Spares:
Plugging tube 4 pcs
Furnace tube 1 pc
Vacuum pump 1 pc
Vacuum sealing flange 2 sets
Vacuum gauge 1 pc
Gas delivery & vacuum pump
RF plasma equipment

Optional Spares:
Quick release flange, Three-way flange
7 inch HD touch scree

1200℃ PECVD Tube Furnace Standard specification:

1. Heating System
Max.temperature	1200℃ (1 hour)
Working temperature	≤1100℃
Chamber size	Φ100*1650mm (Tube diamater is customizable)
Chamber material	High purity alumina fiber board
Thermocouple	K type
Temperatureaccuracy	±1℃
Temperature control	● 50 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ● PLC automatic control system by PC controller inside. ● The temperature control system, sliding system (Time and Distance) could be controlled by program.
Heating length	440mm
Constant heating length	200mm
Heating element	Resistance wire
Power supply	Single phase, 220V, 50Hz
Rated power	9kW
2. RF Plasma Source
RF frequency		13.56 MHz±0.005%
Output power		500W
Max reflect power		500W
RF output interface		50 Ω, N-type, female
Power stability		±0.1%
Harmonic component		≤-50dbc
Supply voltage/Frequency		Single phase AC220V 50/60HZ
Whole efficiency		>=70%
Power factor		>=90%
Cooling method		Forced air
3. Three precision mass flowmeters control system
External dimension		600x600x650mm
Connector type		Swagelok SS joint
Standard range (N2)		0~100sccm, 0~200sccm, or customizable
Accuracy		±1.5%
Linear		±0.5～1.5%
Repeatability		±0.2%
Response time		Gas property: 1～4 Sec; Electrical property: 10 Sec
Pressure range		0.1～0.5 MPa
Max.pressure		3MPa
Interface		Φ6,1/4''
Display		4 digit display
Ambient temperature		5~45 high purity gas
Pressure gauge		－0.1～0.15 MPa, 0.01 MPa/unit
Stop valve		Φ6
Polish SS tube		Φ6
Low vacuum system included

Why Facerom's 1200℃ Lab PECVD Tube Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our 1200C Max. Lab PECVD Tube Furnace with Gas Delivery & Vacuum Pumpe, contact us now to get a quote!
