Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-ST / FMJ-ST
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX TEMPERATURE:1400℃NORMAL VACUUM:-0.1MPa
MAX VACUUM:Configuration Molecular Pump, Vacuum 7x10-4 Pa (Optional)FLANGE:304 Stainless Steel Sealing Flange
OVER-TEMPERATURE PROTECTION:Automatic Power-off When The Temperature Exceeds The Allowable Set ValueSAFETY PROTECTION:Automatically Power Off When The Furnace Body Leaks
FURNACE STRUCTURE:Double Layer Steel Dual Cooling Fan, Surface Temperature Below 50℃MAX HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
TEMPERATURE CONTROL:50 Segments Programmable And Auto ControlAPPLICATON:Materials Analyzing
HIGH LIGHT:1600 Degree Lab Tube Furnace, Adjustable Flange Lab Tube Furnace, Materials Analyzing Tubular Furnace

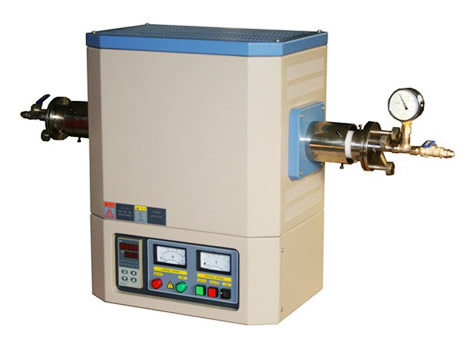

Materials Analyzing Lab Tubular Furnace 1600 Degree with Adjustable Flange Safety Protection

Facerom's 1400℃ High Temperature Materials Analyzing Tubular Furnace, 1400℃ Materials Testing Tubular Furnace, working temperature from 300℃ to 1400℃. Adopt advanced temperature control system, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniformity. Mainly used for labs of the university, research center, and production enterprise, etc.

Max temperature: 1400℃ (SiC Heater)
50 segments programmable and auto control
Furnace structure, double layer steel dual cooling fan, the surface temperature below 50℃
304 stainless steel sealing flange
Adjustable flange support structure at both ends to extend furnace tube life
Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value
Safety protection Automatically power off when the furnace body leaks
Heating rate ≦20℃/min
Temperature accuracy ±1 ℃
Max vacuum -0.1MPa
Configuration molecular pump, Vacuum 7x10^(-4)Pa

1400℃ High Temperature Materials Analyzing Tubular Furnace Standard specification:

Model	Dia*Heating zone	Power	Max working temperature	Thermocouple	Furnace tube material	Heating elements
FGL-14ST-40/300	40x300mm	4 KW	1400℃	S type	Alumina tube	Sic Heater
FGL-14ST-60/300	60x300mm	4 KW
FGL-14ST-80/300	80x300mm	4 KW
FGL-14ST-100/300	100x300mm	6 KW
FGL-14ST-120/300	120x300mm	6 KW
FGL-14ST-40/450	40x450mm	4 KW
FGL-14ST-60/450	60x450mm	4 KW
FGL-14ST-80/450	80x450mm	4 KW
FGL-14ST-100/450	100x450mm	6 KW
FGL-14ST-120/450	120x450mm	6 KW

Standard Spares:
Plugging tube 4 pcs
Furnace tube 1 pc
Vacuum pump 1 pc
Vacuum sealing flange 2 sets
Vacuum gauge 1 pc

Optional Spares:
Vacuum system (Rotary vane vacuum pump, Diffusion pump, Molecular pump)
Atmosphere system (Float flow meter, Mass flow meter)
Quick release flange, Three-way flange
7 inch HD touch scree

Why Facerom's 1400℃ High Temperature Materials Analyzing Tubular Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our Materials Analyzing Lab Tubular Furnace 1600 Degree with Adjustable Flange Safety Protection, contact us now to get a quote!
