Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-200BF
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. TEMPERATURE:1200℃CHAMBER SIZE:200x400mm (Dia X H)
MAX. VACUUM:0.001 PaHEATING ELEMENT:High Quality Fe-Cr-Al-Mo Resistance Wire
TEMPERATURE CONTROL:PLC Auto ControlMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:high temperature vacuum oven, horizontal vacuum furnace

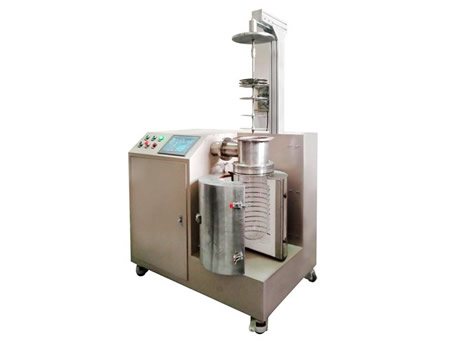

CNC Cutter Vacuum Brazing Furnace
CNC Cutter Vacuum Brazing Furnace For PCD, PCBN, CVD, CBN Tools, Up to 1200 ℃

FGL-200BF Series Brazing furnace is widely used in the welding of various kinds of small size superhard materials, mainly used for cemented carbide tools (PCD tools, PCBN tools, CVD tools, CBN tools, engraving tools, etc.), drilling bit, stainless steel brazing, single crystal welding, porcelain metal brazing, heterotropic metal components, complex sheet: sandwich components, honeycomb structure, etc

PLC auto control, can also switch manual control, 10 inch HD touch screen, 50 segments programmable, 30 program storage, simple operation, continuous production.
The temperature curve and vacuum curve can be derived.
Welding workpiece surface clean and nice and no oxidation; Double stainless steel platform, so that the welding materials placed in order.
Using ring and bottom heating, high welding strength, 2-3 times of ordinary high frequency welding.
High production capacity, single welding quantity can reach more than 600 pieces (take CNGA1204 as an example).
Provide process and technical support with 20 years of experience to ensure quality products are produced.
Vacuum system consists of direct pump and diffusion pump, working vacuum up to 10-3pa.

Main Brazing process: Ultrasonic cleaning →daub solder paste→vacuum drying→vacuum brazing.

Optional accessories:
Chiller; Vacuum oven
Ultrasonic cleaning machine
Flux solder paste

Technical Parameters:

Model	Max Temp. (℃)	Chamber size(mm)	Overall size(mm)	Power (kW)	Thermocouple
FGL-200BF	1200	200x400	1235x1150x750	8	K Type

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
