Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-QHS
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. TEMPERATURE:750℃CAPACITY:12 ~ 324L
MAX. VACUUM:0.001PaFURNACE CHAMBER:Stainless Steel Chamber
HEATING ELEMENT:Heating Alloy TubeTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:high temperature vacuum oven, horizontal vacuum furnace

Alumina Base Brazing Furnace

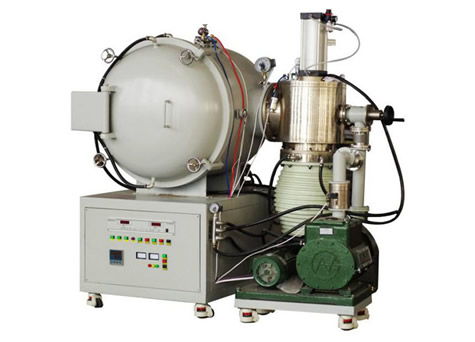

High Temperature Alumina Base Brazing Furnace, Vacuum Brazing Furnace For Aluminum Alloy

This is a vacuum brazing furnace suitable for aluminum alloy and other low melting point workpieces. It can be used as vacuum furnace for low temperature sintering and heat treatment.

Stainless steel metal furnace and electric heating alloy tube heating, the highest temperature can reach 750 ℃.

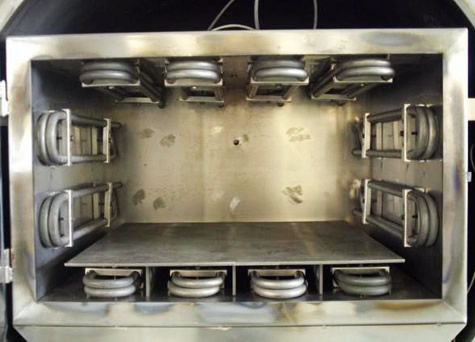

Electrothermal alloy tube around heating, furnace temperature uniformity, up to plus or minus 5 degrees.
Clean stainless steel furnace, equipped with mechanical pump + diffusion pump vacuum unit, cold vacuum 10-3pa; Working vacuum is 10-2pa.
Compared with the vacuum furnace of molybdenum foil, this kind of electric furnace has low power, low price, economical use and is an ideal low temperature brazing equipment.


Optional accessories:

External quick cooling system; From brazing temperature to 180.

Less than an hour.

Stainless steel multi-layer rack, convenient for placing multi-layer brazing workpieces.

Low-temperature al-zinc-based flux.

Flux composition	Color	Melting temp.
AlSi12	Black	580℃
AlSiCu	Black	480-550℃
Zn98Al	Black	450℃
ZnSnCu	Black	380℃

Technical parameters:

Model	Chamber size	Temp.	Power	Voltage
FGL-QHS-223	200*200*300mm	750℃	3kW	380V
FGL-QHS-334	300*300*400mm	750℃	6kW	380V
FGL-QHS-446	400*400*600mm	750℃	12kW	380V
FGL-QHS-557	500*500*700mm	750℃	18kW	380V
FGL-QHS-669	600*600*900mm	750℃	28kW	380V
