Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-QHS
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. TEMPERATURE:1350℃CAPACITY:12 ~ 324L
MAX. VACUUM:0.001PaFURNACE CHAMBER:Molybdenum Foil
HEATING ELEMENT:Molybdenum Heating BeltTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Diamond Tools Brazing
HIGH LIGHT:high temperature vacuum oven, horizontal vacuum furnace

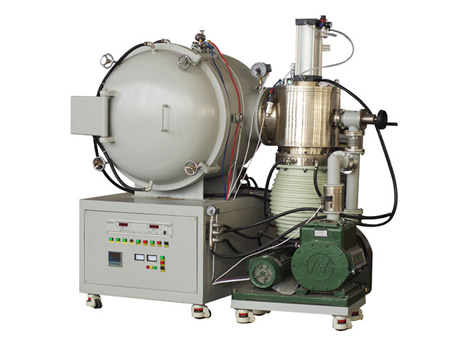

High Temperature Diamond Tools Brazing Furnace, Vacuum Brazing Furnace for Diamond Tools

This kind of High Temperature Diamond Tools Brazing Furnace, Vacuum Brazing Furnace for Diamond Tools working temperature can reach 1350℃; Suitable for Diamond tools brazing in the vacuum environment. Due to its high vacuum and high temperature, it can also be used for sintering and heat treatment of other workpieces.

Using molybdenum foil metal furnace, and molybdenum and tropical for heating element, the highest temperature can reach 1350℃.
The annular distribution of molybdenum heating belt and the furnace, the surrounding radiation heating, the furnace temperature uniformity is high, up to plus or minus 5 degrees.

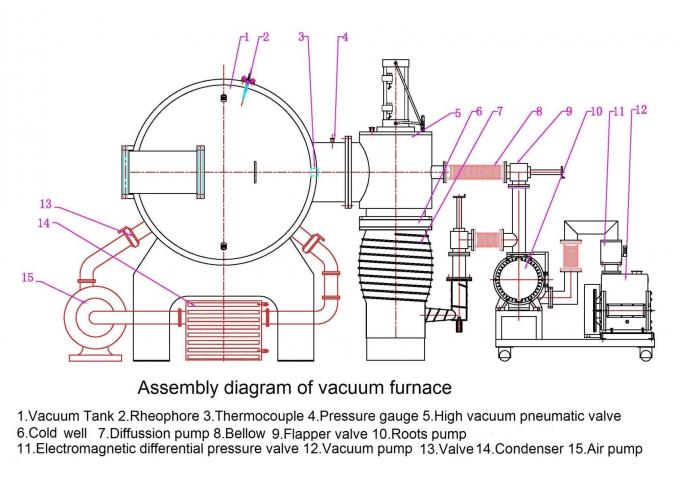

Clean Molybdenum foil chamber, equipped with a mechanical pump + diffusion pump vacuum unit, cold vacuum 10^(-3)pa; Working vacuum is 10^(-2)pa.
As required, the inert gas can be added for accelerated cooling.

PCD Tools Vacuum Brazing Furnace with quick cooling system

Due to the slow cooling of ordinary brazing furnace, the production efficiency is seriously affected. In order to accelerate the cooling rate, our company combined with years of production practice experience developed a vacuum brazing furnace rapid cooling system. The high-temperature nitrogen in the furnace is forcefully pumped out by the vacuum fan, cooled by the cooling water bag, and then sent back to the furnace by the vacuum fan. This rapid cycle leads to rapid cooling.

Optional accessories:
External quick cooling system;From soldering temperature to 180 degrees, less than 1 hour.
Multi-layer rack, convenient for placing multi-layer brazing workpieces.
High quality flux imported from USA.

Diamond Tools Brazing Furnace Technical parameters:

Model	Chamber size	Temp.	Power	Voltage
FGL-QHM-223	200*200*300	1350℃	42kW	380V
FGL-QHM-334	300*300*400	1350℃	72kW	380V
FGL-QHM-446	400*400*600	1350℃	120kW	380V
FGL-QHM-557	500*500*700	1350℃	160kW	380V
FGL-QHM-669	600*600*900	1350℃	225kW	380V

Why Facerom's Vacuum Brazing Furnace for Diamond Tools?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our High Temperature Diamond Tools Brazing Furnace, Vacuum Brazing Furnace for Diamond Tools, contact us now to get a quote!
