Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-WYA
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

VACUUM:10 PaMAX. TEMPERATURE:1600℃
CAPACITY:192L ~ 576LHEATING ELEMENT:MoSi2 Heating Element
MULTI-ZONE TEMPERATURE CONTROL:YesSPECIAL GAS CIRCUIT:Yes
CHAMBER:Ceramic FiberTEMPERATURE CONTROL:50 Programmable Temperature Meter PID Adjustment
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:vacuum heat treatment furnace, electric heat treatment furnace

Non-pressure Furnace

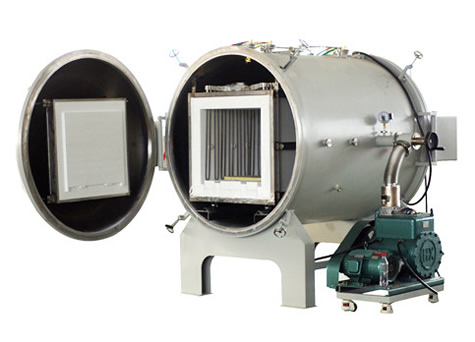

High Temperature Non-pressure Furnace, 1600℃ 10pa Vacuum Furnace for Si3N4 Powder

Non-pressure atmosphere furnace is equipped with Vacuum System, when the air in the chamber pumped out, inlet high purity N2 into the chamber, and sintering under the N2 protective environment. When used for the production of high purity Si3N4 powder, the N2 and Si powder can fully react, the flour extraction rate can reach 92%.

Ceramic Fiber Chamber, Mosi2 heating element, max. temperature can be 1600℃
Can realize multi-zone temperature control as per heating zone length, make sure the temperature uniformity of the working chamber.
Chamber bottom adopts high strength alumina brick, with loading car rail, can easily load sintering material.
Double-pole rotary mechanical pump, the vacuum can be 10Pa.
Special gas circuit design, High purity N2 inlet into the chamber through the gas circuit after deoxidation and dewatering treatment, exhaust at the release port of chamber, thus ensure N2 can circuit effectively.
Sliding furnace tank design, can maintenance conveniently.

Optional Spares:
Si3N4 loading box
Si3N4 protection board

Technical Parameter:

Model	Heating Zone (3 zone)	Temperature	Power	Voltage
FGL-WYA-4412	400*400*1200mm	1600℃	60KW	380V
FGL-WYA-6616	600*600*1600mm	1600℃	105KW	380V

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
