Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-STV
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:30-50 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

VACUUM:0.0667PaMAX. TEMPERATURE:2400℃
CHAMBER SIZE:Φ320×320 Max.FURNACE CHAMBER:Graphite Felt
HEATING ELEMENT:GraphiteOBSERVATION HOLE:Yes
CONTROL:PLCTHERMOCOUPLE:W-Re Thermocouple
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:vacuum annealing furnace, electric heat treatment furnace

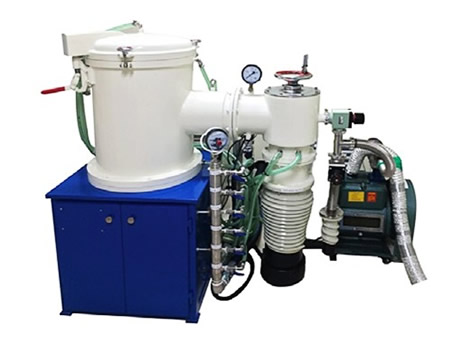

Graphite Vacuum Furnace Vertical Type

Ultra High Temperature Graphite Vacuum Furnace Up to 2400℃ Vertical Type

This Vacuum Furnace is periodic working, adopt graphite tube as heating elements, the working chamber is round and vertical, mainly used for sintering metal material, non-metal material in vacuum or protective atmosphere environment can also be used for sintering and purification of optical material.

Graphite heating element, max. Temperature can be 2400℃.
Furnace shell inner layer is stainless steel, the outer layer is carbon steel, double layers water-cooling structure.
Furnace shell has an observation hole, can see the heating situation in the chamber. Adopt a W-Re thermocouple and infrared thermometer to measure temperature, thermocouple goes in and out automatically.


Technical Parameters

Model	Heating Zone (Dia.* Height)	Temperature	Power	Voltage	Vacuum
FGL-22STV-20	Φ80×100mm	2200℃	20kW	380V	6.67×10-3Pa
FGL-22STV-25	Φ90×120mm	2200℃	25kW	380V
FGL-22STV-40	Φ140×160mm	2200℃	40kW	380V
FGL-22STV-50	Φ160×200mm	2200℃	50kW	380V
FGL-22STV-60	Φ260×270mm	2200℃	60kW	380V
FGL-22STV-100	Φ320×320mm	2200℃	100kW	380V

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
