Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-GHM
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:30-50 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. VACUUM:0.0667PaMAX. TEMPERATURE:2400℃
CAPACITY:12 ~ 324LFURNACE CHAMBER:Graphite Felt
HEATING ELEMENT:GraphiteOBSERVATION HOLE:Yes
CONTROL:PLCTHERMOCOUPLE:W-Re Thermocouple
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:vacuum heat treatment furnace, electric heat treatment furnace

Graphite Vacuum Furnace Horizontal Type

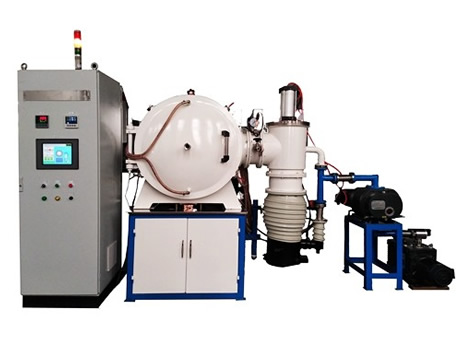

Ultra High Temperature Graphite Vacuum Furnace Up to 2400℃ Horizontal Type

The ultra-temperature graphite furnace is a performance intelligent heating furnace, adopt advanced temperature measurement, temperature control, intelligence, new material, and furnace chamber design. This furnace is mainly used for high temperature treatment of materials in vacuum or protective atmosphere environment.

Graphite heating element, max. Temperature can be 2400℃.
Insulation furnace chamber adopts import graphite soft felt and hard felt.
Furnace shell inner layer is stainless steel, the outer layer is carbon steel, double layers water-cooling structure.
Furnace door adopt front open and back open, easy to load and unload material.
Furnace shell has an observation hole, can see the heating situation in the chamber.
Adopt a W-Re thermocouple and infrared thermometer to measure temperature, thermocouple goes in and out automatically.

Technical Parameters

Model	Heating Zone	Temperature	Power	Voltage
FGL-GHM-223	200*200*300mm	2200℃	45kW	380V
FGL-GHM-334	300*300*400mm	2200℃	60kW	380V
FGL-GHM-446	400*400*600mm	2200℃	90kW	380V
FGL-GHM-557	500*500*700mm	2200℃	150kW	380V
FGL-GHM-669	600*600*900mm	2200℃	180kW	380V

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
