Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-WSL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:30-50 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. VACUUM:0.00006 PaMAX. TEMPERATURE:2200℃
CHAMBER SIZE:Φ400×600 Max.FURNACE CHAMBER:Tungsten Foil
HEATING ELEMENT:Tungsten Coil NetTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:vacuum annealing furnace, vacuum heat treatment furnace

Vacuum Tungsten Coil Furnace

High Temperature Vacuum Tungsten Coil Furnace Up to 2200℃

Vacuum tungsten coil furnace adopts tungsten coil net as heating elements, pollution-free, mainly used for the heat treatment of ceramic, sapphire glass, zirconia in a vacuum environment. Also used for universities and research centers for mass production.

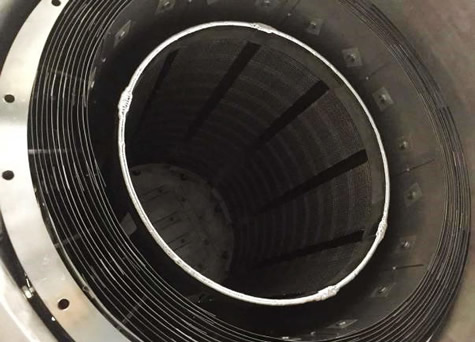

Specially designed tungsten net heating and tungsten foil as the thermal insulation scre, the max. temperature can be 2200℃
Vacuum system can choose turbo pump, the ultimate vacuum can be 6x10^(-5)Pa.
Can inlet N2, Ar, H2, N2, and H2 mixed gas, etc.

Technical Parameter:

Model	Heating Zone (Dia * Height)	Temperature	Temp. Uniformity	Power	Vacuum
FGL-WSL-1010	ф100x 100mm	1900℃	±3℃	21KW	6x10-5Pa
FGL-WSL-2030	ф200x300mm	1900℃	±3℃	68KW	6x10-5Pa
FGL-WSL-3050	ф300x500mm	1900℃	±3℃	120KW	6x10-5Pa
FGL-WSL-4060	ф400x600mm	1900℃	±3℃	160KW	6x10-5Pa

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
