Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-RLL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:30-50 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX VACUUM:0.006 PaMAX. TEMPERATURE:1700℃
CAPACITY:10 ~ 200 KgsFREQUENCY:1500 ~ 4000 HZ
HEATING ELEMENT:Copper Tube Induction HeaterOBSERVATION WINDOW:Yes
FEEDER:Alloy FeederTEMPERATURE CONTROL:PLC Auto Control
HIGH LIGHT:vacuum annealing furnace, vacuum heat treatment furnace

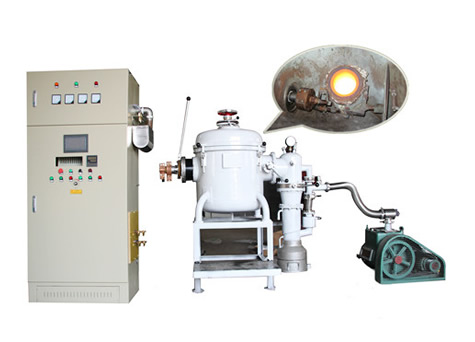

1700℃ Max. Medium Frequency Vacuum Induction Melting Furnace

The vacuum melting furnace adopts the theory of medium frequency induction heating and builds a high vacuum system so that the metal could be melted under a high vacuum situation. This furnace is widely used in many kinds of research and production, such as nickel and special steel, precision alloy, activity metal, high temperature alloy, magnet material, etc. Also suitable for the vacuum precision cast of small parts.

Adopt IGBT medium frequency power supply, the max temperature is 1700℃.
The vacuum system is composed by mechanical pump,roots pump,diffusion pump, the max vacuum level is 6x10^(-3)Pa.
The alloy feeder built inside. The material can be fed into melting crucible by operating the feeder handle.
The furnace cover is equipped with an observation window, easy to observe the performance of the furnace.
Induction heater consists of a rectangular copper tube, through the two mating nuts fixed on the electrode, easy to disassemble.
The crucible could be placed inside the inductor. The crucible material should be following the melt alloy type.

Vacuum Induction Melting Furnace Technical parameter:

Model	Capacity	Max.temp	Frequency	Voltage	Power	Ultimate vacuum	Cooling water
FGL-RLL-10	10kgs	1700℃	4000HZ	220V	35KW	6x10-3Pa	1.5m3/H
FGL-RLL-25	25kgs	1700℃	2500HZ	250V	50KW	6x10-3Pa	2.5m3/H
FGL-RLL-50	50kgs	1700℃	2500HZ	300V	100KW	6x10-3Pa	10m3/H
FGL-RLL-100	100kgs	1700℃	2000HZ	300V	160W	6x10-3Pa	10m3/H
FGL-RLL-150	150kgs	1700℃	2000HZ	320V	175KW	6x10-3Pa	10m3/H
FGL-RLL-200	200kgs	1700℃	1500HZ	350V	200KW	6x10-3Pa	10m3/H
