Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12VF/17VF / FMJ-12VF/17VF
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:100 Sets per month

VACUUM:Up To 10 Pa (Two-stage Rotary Vane Vacuum Pump)MAX. TEMPERATURE:1200℃
CAPACITY:1 ~ 324LINERT GAS:Designed With Air Inlet And Exhaust Port, It Can Be Used For Vacuum Pumping Or Filling With Inert Gas
VACUUM VALVE:Pneumatic Vacuum Valve, Easy To OperateVACUUM LEAKAGE RATE:Helium Mass Spectrometer Leak Detector Vacuum Pickup, Ensure The Vacuum Leakage Rate Is Lower Than 0.67Pa/h.
CHAMBER:Alumina Ceramic FiberHEATING ELEMENT:Resistance Wire Or MoSi2 Heating Element
COOLING:Double Water-cooling, Furnace Shell Surface Temperature 50 ℃ Or LessALARM:Upper Limit Alarm, Deviation Alarm, Automatic Stop At The End Of Program Operation, No Man On Duty
CONTROL:50 Programmable Temperature Meter PID AdjustmentMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
TYPE:Vacuum Debinding Furnace
HIGH LIGHT:1200 Degree Vacuum Debinding Furnace, 324L Vacuum Debinding Furnace, 10Pa Vacuum Debinding Furnace

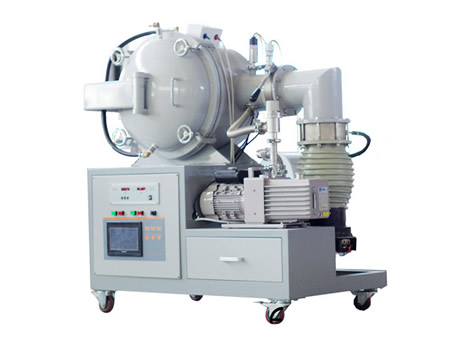

High Temperature Vacuum Debinding Furnace up to 1200 degree

This electric furnace is a very cost-effective vacuum furnace. Low price, simple operation, excellent vacuum effect, good temperature field uniformity.
It is used in high-temperature vacuum sintering, annealing, and tempering of ceramic materials, ceramic metal composites, refractory metals, and alloy materials.

Technical parameter:1200Type

Model	Max Temp.	Chamber size (WxHxD)	Heating element	Capacity (L)	Power (KW)	Vacuum
FGL-12VF-1	1200	100*100*100	Resistance wire	1	1.2	10Pa
FGL-12VF-5	1200	150*150*200	Resistance wire	4.5	3.5	10Pa
FGL-12VF-12	1200	200*200*300	Resistance wire	12	5	10Pa
FGL-12VF-36	1200	300*300*400	Resistance wire	36	12	10Pa
FGL-12VF-64	1200	400*400*500	Resistance wire	80	18	10Pa
FGL-12VF-125	1200	500*500*700	Resistance wire	175	30	10Pa
FGL-12VF-216	1200	600*600*900	Resistance wire	324	50	10Pa

Standard Parts:
High-temperature gloves
Crucible clip
Operation Manual

Optional Parts:
Independent control cabinet
PLC automatic control system
Rapid furnace cooling system
