Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-RYL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:30-50 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX. VACUUM:0.006 PaMAX. TEMPERATURE:1200℃ / 2000℃
MAX. CHAMBER SIZE:300x300mm (Dia X H)ACCURACY:0.02mm
MAX. DISPLACEMENT:200mmHEATING ELEMENT:Graphite Heater (>2000℃)
CONTROL:PLCMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
FURNACE TYPE:Vacuum Pressing Furnace
HIGH LIGHT:20T Vacuum Press Furnace, PLC Vacuum Press Furnace, 2000 Degree Vacuum Press Furnace

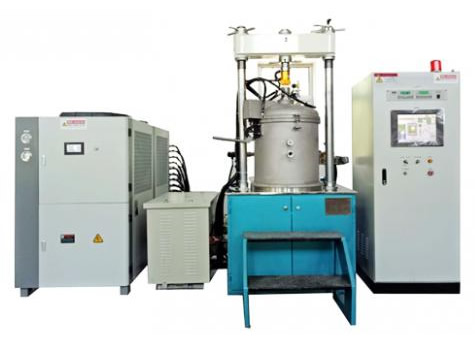

Industrial PLC 20T Vacuum Pressing Furnace up to 2000 degrees

This Industrial PLC 20T Vacuum Pressing Furnace up to 2000 degrees mainly used for the high-temperature sintering and hot press treatment, such as inorganic material, hard alloy, function ceramic, metallurgy powder. The material density could be increased under a vacuum condition or protective atmosphere.

The heating element could be selected according to the difference between hot press temperature and vacuum level. The resistance module is suitable below 1200℃ and the graphite heater is suitable over 1200℃.
The press range is adjustable below 5 tons so that it’s can be used for sample sintering and hot press testing to avoid resource waste.
Ranging by a grating ruler with high accuracy to 0.02mm.
All the actions could be controlled by a PLC system, including temperature control, press adjustment, temperature auto-tracking. All the furnace running monitoring and data could be displayed and record on the touch screen, such as temperature, vacuum level, displacement. The data curve could check in real-time.

W-Re thermocouple at low temperature and infrared thermocouple for high temperature. The W-Re thermocouple will be auto quit at high temperatures.

Industrial PLC 20T Vacuum Pressing Furnace Technical Parameter:

Model	Working size	Max. temp	Press	Displacement	Power	Ultimate vacuum
FGL-RYL-10	Ф160x160	2000℃	20T	100mm	25KW	6x10-3Pa
FGL-RYL-20	Ф200x200	2000℃	20T	150mm	60KW	6x10-3Pa
FGL-RYL-30	Ф300x300	2000℃	20T	200mm	120KW	6x10-3Pa
FGL-RYLA-10	Ф160x160	1100℃	20T	100mm	8KW	6x10-3Pa
FGL-RYLA-20	Ф200x200	1100℃	20T	150mm	12KW	6x10-3Pa
FGL-RYLA-30	Ф300x300	1100℃	20T	200mm	20KW	6x10-3Pa

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
