Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-DPF
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:100 Sets per month

VACUUM:Up To 10 Pa (Two-stage Rotary Vane Vacuum Pump)MAX. TEMPERATURE:1700℃
CAPACITY:1 ~ 324 LINERT GAS:Designed With Air Inlet And Exhaust Port, It Can Be Used For Vacuum Pumping Or Filling With Inert Gas
VACUUM VALVE:Pneumatic Vacuum Valve, Easy To OperateVACUUM LEAKAGE RATE:Helium Mass Spectrometer Leak Detector Vacuum Pickup, Ensure The Vacuum Leakage Rate Is Lower Than 0.67Pa/h.
CHAMBER:Alumina Ceramic FiberHEATING ELEMENT:Resistance Wire Or MoSi2 Heating Element
COOLING:Double Water-cooling, Furnace Shell Surface Temperature 50 ℃ Or LessALARM:Upper Limit Alarm, Deviation Alarm, Automatic Stop At The End Of Program Operation, No Man On Duty
CONTROL:50 Programmable Temperature Meter PID AdjustmentMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:1700 Degree DPF Sintering Furnace, DPF High Temperature Vacuum Furnace, Programmable DPF Sintering Furnace

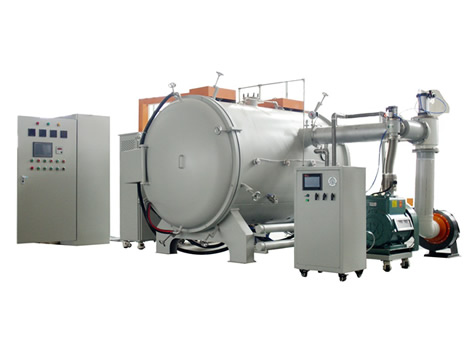

1700℃ Sintering Furnace for DPF (Diesel Particulate Filters)
This 1700℃ electric furnace is a perfect vacuum sintering furnace for Diesel Particulate Filters (DPF). Low price, simple operation, excellent vacuum effect, good temperature field uniformity.

DPF Sintering Furnace Features
Vacuum up to 10Pa.
The Max. temperature: 1700 ℃
Quality MoSi2 Heating Elements.
Pneumatic vacuum valve, easy to operate.
Use alumina ceramic fiber furnace and resistance wire or silicon molybdenum rod heating. At the same time, the cost of the electric furnace is greatly reduced.
Cooling system to make sure furnace shell surface temperature 50 ℃ or less.
High strength carbon steel, external electrostatic spray, beautiful and generous.
50 programmable temperature meter PID adjustment.
Upper limit alarm, deviation alarm, automatic stop at the end of the program operation, no man on duty.

Vacuum Sintering Furnace for DPF (Diesel Particulate Filters) Technical Specifications

Technical Specifications
Chamber size	600x600x1500mm (Width * Height * Depth) Can Be Customized
Max. temperature	1700 C (<2hour)
Working temperature	1600 C
Temperature controlling	● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
	● 51 programmable segments for precise control of heating rate, cooling rate, and dwell time.
	● Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.
	● Over-temperature protection and alarm allows for operation without an attendant.
Temperature accuracy	±1C
Temperature Uniformity	±5C over 120mm @ 1600C
	±3C over 80mm @ 1600C
Heating rate	0-20C /min
Thermocouple	B type
Heating element	Quality Mosi2 Heating Elements
Vacuum	10 Pa
Furnace Chamber	3 layers of ceramic fiber insulation materials
Furnace structure	Double layer steel casing with dual cooling fan, surface temperature below 60C
Furnace door	● Front-side open
	● Power cutting off when furnace door open
Working voltage	3800V, 50HZ/60HZ
Rated power	110 KW

Note: Other Chamber sizes can be customized.

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our Industrial Diesel Particulate Filters DPF Sintering Furnace, contact us now to get a quote.
