MAX. VACUUM:4x10-1PaMAX. TEMPERATURE:1320℃
CAPACITY:500kgs Max.FURNACE CHPHITEAMBER:Graphite
HEATING ELEMENT:GraphiteGAS COOLING PRESSURE:1 ~ 6 Bar
MAX COOLING RATE:1200℃ To 300℃ Less Than 5minMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
HIGH LIGHT:Graphite High Temperature Vacuum Furnace, 500kgs Gas Quenching Furnace, 6Bar Gas Quenching Furnace

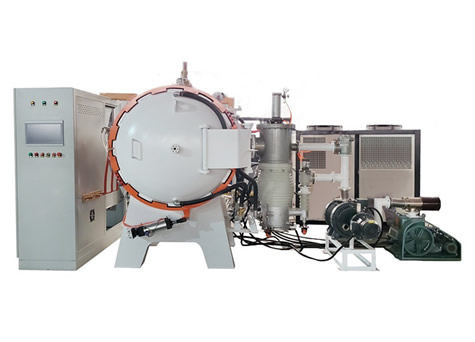

High Temperature Vacuum Gas Quenching Furnace up to 1320 degree

The vacuum gas quenching furnace is mainly used in vacuum bright quenching and sintering, brazing of tool steel, die steel, elastic alloy, stainless steel, 3D additional material, etc. The furnace is mainly composed of a pressure tank, heating room, vacuum system, electric control system, air inflation system, water cooling system, pneumatic system, and carrier cart, etc.

The heating chamber is composed of graphite heater, graphite soft felt and hard felt, the max temperature is 1320℃.
The multiserial graphite spray nozzle located inside the heating chamber along with the induction inwall. The gas uniform sprayed from the spray nozzle during gas quenching.
The material platform is composed of graphite support, hearth, and Al2O3 sticker. This structure will prevent the adhesion between the platform and hearth during high temperature.
Gas cooling system: which is composed of high press wheel blower, multistage high-efficient copper heat exchanger and duct deflector. Filling high purity N2 or Ar during gas cooling, spray to the workpiece through duct deflector to achieve workpiece uniform cooling.
The gas cooling pressure is adjustable from 1-6 bar.

Max cooling rate: from 1200℃ to 300℃ less than 5min. (The cooling water temperature is lower than 35℃)

Vacuum Gas Quenching Furnace Technical Specifications
Furnace structure	Single chamber, horizontal
Furnace door closing mode	Fast tighting by hinge and gear ring, pneumatic drving
Chamber size	450x300x300mm(L*W*H)
Max loading capacity	80kg (Including tooling)
Max temperature	1320 ℃ (less than 10 minutes)
Working temperature in vacuum	500-1250℃
Vacuum parameters	● Ultimate vacuum level 4×10-1 Pa ● Working vacuum level 4Pa ● Pressure rise rate (Complete drying): ≤3Pa/h ● Pumping speed (To working vacuum): ≤20 min ● Partial pressure range: 10-800Pa ● Max inner pressure (Absolute pressure): ≤6 bar
Cooling parameters	● Cooling speed (1200℃ to 300℃, 6bar, ≦700KG):5mins ● Air tube (18 pcs main,6 pcs small),material: seamless tube ● Heat exchanger:red copper, finned tube ● Heat exchanger water feeding pattern: back in, front out
Input voltage	380V 3P, 50Hz
Total power	125kVA
Rated heating power	80KW
Cooling fan power	45kW
Cooling water	Preassure of cooling water: 0.2-0.3MPa
Total weight	Approx 3 tons
Floor area	Approx 20m3
Cooling gas	N2/Ar, purity over 99.99%
Compressed air pressure	0.4-0.6MPa
Control system	● Temp control mode: Programmable auto single zone temperature control ● Control mode: Full-automatic/Manual ● Cooling mode: air cooling/natural cooling

Other sizes can be customized.

Vacuum Gas Quenching Furnace standard model:

Model	Chamber size(mm)	Max.Temp (℃)	Capacity (kgs)	Temperature uniformity(℃)	Power (kW)	Ultimate vacuum
FGL-QCL-334	300*300*450	1320	80	±5	125	4×10^(-1)
FGL-QCL-446	400*400*600	1320	200	±5	145	4×10^(-1)
FGL-QCL-557	500*500*700	1320	300	±5	190	4×10^(-1)
FGL-QCL-669	600*600*900	1320	500	±5	282	4×10^(-1)
