Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12HVF/17HVF / FMJ-12HVF/17HVF
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

VACUUM:0.007PaMAX. TEMPERATURE:1700℃
CAPACITY:1 ~ 324 LINERT GAS:Designed With Air Inlet And Exhaust Port, It Can Be Used For Vacuum Pumping Or Filling With Inert Gas
VACUUM VALVE:Pneumatic Vacuum Valve, Easy To OperateVACUUM LEAKAGE RATE:Helium Mass Spectrometer Leak Detector Vacuum Pickup, Ensure The Vacuum Leakage Rate Is Lower Than 0.67Pa/h.
CHAMBER:Alumina Ceramic FiberHEATING ELEMENT:Resistance Wire Or MoSi2 Heating Element
COOLING:Double Water-cooling, Furnace Shell Surface Temperature 50 ℃ Or LessALARM:Upper Limit Alarm, Deviation Alarm, Automatic Stop At The End Of Program Operation, No Man On Duty
CONTROL:50 Programmable Temperature Meter PID AdjustmentMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
APPLICATION:Vacuum HardeningNAME:Vacuum Heat Treatment Furnace
HIGH LIGHT:vacuum annealing furnace, electric heat treatment furnace

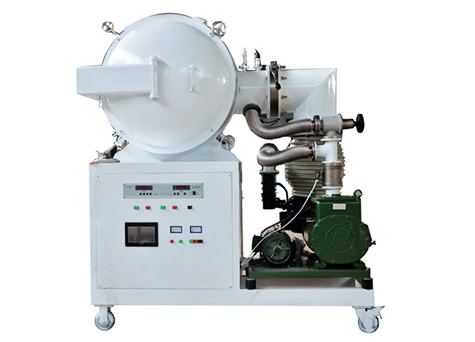

High Temperature Vacuum Hardening Furnace, 0.007Pa Vacuum Hardening Box Furnace Up to 1700℃

This High Temperature Vacuum Hardening Furnace, 0.007Pa Vacuum Hardening Box Furnace Up to 1700℃ is a very cost-effective vacuum furnace. Low price, simple operation, excellent vacuum effect, good temperature field uniformity. It is used for high temperature vacuum sintering, annealing, tempering and aging treatment of ceramic materials, ceramic metal composites, refractory metals, and alloy materials, as well as vacuum brazing of alloy tools and superhard materials.

Vacuum up to 7* 10^(-3)pa (two-stage rotary vane vacuum pump+roots pump+diffusion pump unit)
The highest temperature 1700 ℃.
Designed with air inlet and exhaust port, it can be used for vacuum pumping or filling with inert gas.
Pneumatic vacuum valve, easy to operate.
Helium mass spectrometry leak detector vacuum pickup, ensure the vacuum leakage rate is lower than0.67Pa/h.
Use alumina ceramic fiber furnace and resistance wire or silicon molybdenum rod heating. At the same time, the cost of the electric furnace is greatly reduced.
Double water-cooling, furnace shell surface temperature 50 ℃ or less.
High strength carbon steel, external electrostatic spray, beautiful and generous.
50 programmable temperature meter PID adjustment.
Upper limit alarm, deviation alarm, automatic stop at the end of the program operation, no man on duty.

Standard Parts:
High-temperature gloves
Crucible clip
Operation Manual

Optional Parts:
Independent control cabinet
PLC automatic control system
Rapid furnace cooling system

High Temperature Vacuum Hardening Furnace Technical parameter:1200Type

Model	Max Temp.	Chamber size (WxHxD)	Heating element	Capacity (L)	Power (KW)	Vacuum
FGL-12HVF-1	1200	100*100*100	Resistance wire	1	1.2	7*10-3Pa
FGL-12HVF-5	1200	150*150*200	Resistance wire	4.5	3.5	7*10-3Pa
FGL-12HVF-12	1200	200*200*300	Resistance wire	12	5	7*10-3Pa
FGL-12HVF-36	1200	300*300*400	Resistance wire	36	12	7*10-3Pa
FGL-12HVF-64	1200	400*400*500	Resistance wire	80	18	7*10-3Pa
FGL-12HVF-125	1200	500*500*700	Resistance wire	175	30	7*10-3Pa
FGL-12HVF-216	1200	600*600*900	Resistance wire	324	50	7*10-3Pa



High Temperature Vacuum Hardening Furnace Technical parameter:1700Type

Model	Max Temp.	Chamber size (WxHxD)	Heating element	Capacity (L)	Power (KW)	Vacuum
FGL-17HVF-1	1700	100*100*100	MoSi2 heater	1	1.5	7*10-3Pa
FGL-17HVF-5	1700	150*150*200	MoSi2 heater	4.5	5	7*10-3Pa
FGL-17HVF-12	1700	200*200*300	MoSi2 heater	12	8	7*10-3Pa
FGL-17HVF-36	1700	300*300*400	MoSi2 heater	36	12	7*10-3Pa
FGL-17HVF-64	1700	400*400*500	MoSi2 heater	80	30	7*10-3Pa
FGL-17HVF-125	1700	500*500*700	MoSi2 heater	175	45	7*10-3Pa
FGL-17HVF-216	1700	600*600*900	MoSi2 heater	324	66	7*10-3Pa

Why Facerom's 0.007Pa Vacuum Hardening Box Furnace Up to 1700℃?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our High Temperature Vacuum Hardening Furnace, 0.007Pa Vacuum Hardening Box Furnace Up to 1700℃, contact us now to get a quote.
