Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-18HM / FMJ-18HM
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1800℃VOLUME:1 ~ 8L
HEATING ELEMENT:Super MoSi2 Heating ElementFURNACE CHAMBER:Ceramic Fiber Chamber Imported From Japan, Ultra-high Temperature Coating Inside
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Industrial Heat Treatment Under 1800°C
HIGH LIGHT:industrial metal melting furnace, industrial chamber furnace

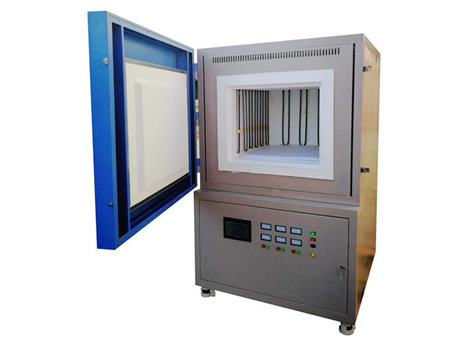

High Temperature 1800℃ Industrial Heat Treatment Muffle Furnace, 1800C Heat Treatment Industrial Chamber Furnace

Facerom's High Temperature 1800℃ Industrial Heat Treatment Muffle Furnace, 1800C Heat Treatment Industrial Box Furnace mainly used for production enterprises for the heat treatment process under 1800℃.

Facerom muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

Max working temperature 1800℃
Volume: as per your order
Super MoSi2 heating element.
Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside.
50 segments programmable and PID auto control
With over temperature alarm function
Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃

Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Software
Furnace furniture as per your requirement.
Alumina crucible as per your requirement
Special design as per your requirement

1800℃ Industrial Heat Treatment Muffle Furnace Technical Parameter:

Model	Max Temperature (℃)	Inner size (W *H * D) mm	Volume (L)	Power (KW)	Phase	Thermocouple
FGL-18HM-1	1800	100*100*100	1	2	1	B type
FGL-18HM-2	1800	120*120*130	2	4	1	B type
FGL-18HM-3	1800	150*150*150	3	6	1	B type
FGL-18HM-5	1800	150*150*200	5	7	1	B type
FGL-18HM-8	1800	200*200*200	8	8	1	B type

Other chamber sizes can be customized.

Why Facerom's 1800℃ Industrial Heat Treatment Box Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're inerested in our High Temperature 1800℃ Industrial Heat Treatment Muffle Furnace, 1800C Heat Treatment Industrial Box Furnace, contact us now to get a quote!
