Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-17M / FMJ-17M
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1700℃VOLUME:As Per Your Order
HEATING ELEMENT:High Quality MoSi2 Heating ElementFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Industrial Ceramics Firing
HIGH LIGHT:vacuum muffle furnace, industrial chamber furnace

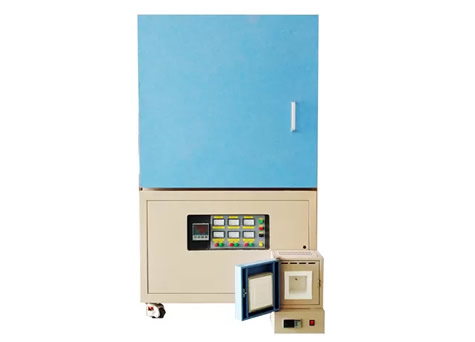

1700℃ High Temperature Industrial Ceramic Furnace, 1700C Industrial Ceramic Kilns

Brothe's 1700℃ High Temperature Industrial Ceramic Firing Furnace, Industrial Ceramic Kilns are Ideal Fit for Industrial Ceramics Engineers to producing High Quality Ceramic Process Output across the wide variety of process variations:

Ceramic Annealing
Dental Applications
Metallizing & Powder processing
Thermal Cycling for hardening and brazing
Co-Firing for creation of multilayer ceramics.
Flattening
Ceramic arts and crafts
Ceramic Kilns Industrial Muffle Furnace Over Temperature Alarm CE Approval 0

Facerom muffle furnace & kilns using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

Max temperature: 1700℃
Volume: as per your order
High quality MoSi2 heating element.
The upper door and the side door can be customized to keep the operator away from the heat source.
50 segments programmable and PID auto control
With over temperature alarm function

Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual
MoSi2 heating element 2pcs

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Software
Furnace furniture as per your requirement.
Alumina crucible as per your requirement
Special design as per your requirement


1700℃ High Temperature Industrial Ceramic Furnace Technical Parameter

Model	Max temperature (°C)	Inner size (W *H * D) mm	Volume (L)	Power (KW)	Phase	Thermocouple
FGL-17M-1	1700	100*100*100	1	1	1	B type
FGL-17M-2	1700	120*120*130	2	3	1	B type
FGL-17M-3	1700	150*150*150	3	4	1	B type
FGL-17M-5	1700	150*150*200	5	5	1	B type
FGL-17M-8	1700	200*200*200	8	7	1	B type
FGL-17M-12	1700	200*200*300	12	8	1	B type
FGL-17M-27	1700	300*300*300	27	10	3	B type
FGL-17M-36	1700	300*300*400	36	12	3	B type
FGL-17M-64	1700	400*400*400	64	20	3	B type
FGL-17M-125	1700	500*500*500	125	30	3	B type
FGL-17M-216	1700	600*600*600	216	45	3	B type
FGL-17M-512	1700	800*800*800	512	80	3	B type
FGL-17M-729	1700	900*900*900	729	96	3	B type
FGL-17M-1000	1700	1000*1000*1000	1000	120	3	B type
Chamber size can be customized

Why Facerom's 1700℃ High Temperature Industrial Ceramic Kilns?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you are interested in our 1700℃ High Temperature Industrial Ceramic Furnace, 1700C Industrial Ceramic Kilns, contact us now to get a quote!
