Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12N / FMJ-12N
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1200℃VOLUME:1 ~ 1000L
HEATING ELEMENT:High Quality Fe-Cr-Al-Mo Resistance WireFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃ Over 120mm @ 1200℃; ±3℃ Over 80mm @ 1100℃APPLICATION:Industrial Annealing Under 1200C
HIGH LIGHT:vacuum muffle furnace, industrial metal melting furnace

1200℃ High Temperature Industrial Annealing Muffle Furnace, 1200C Industrial Annealing Chamber Furnace

Facerom's 1200℃ High Temperature Industrial Annealing Muffle Furnace, 1200C Industrial Annealing Chamber Furnace mainly used for production enterprises to do the high-temperature annealing process under 1200℃.

Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

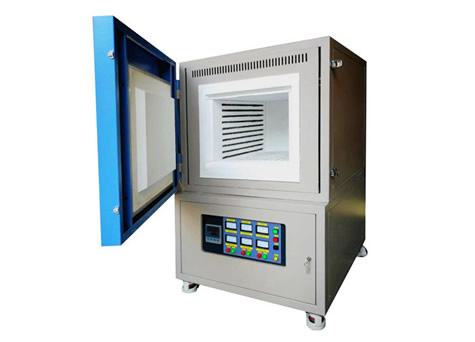

Annealing Chamber Industrial Muffle Furnace Programmable Strength Structured 0

Max Temperature: 1200℃
Volume: as per your order
Super heating wires
Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside.
50 segments programmable and PID auto control
With over temperature alarm function
Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃

Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Software
Furnace furniture as per your requirement.
Alumina crucible as per your requirement
Special design as per your requirement

1200℃ High Temperature Industrial Annealing Muffle Furnace Technical Parameter

Model	Max temperature(°C)	Inner size (W *H * D) mm	Volume (L)	Power (KW)	Phase	Thermocouple
FGL-12N-1	1200	100*100*100	1	0.8	1	K type
FGL-12N-2	1200	120*120*130	2	1.2	1	K type
FGL-12N-3	1200	150*150*150	3	2.5	1	K type
FGL-12N-5	1200	150*150*200	5	3	1	K type
FGL-12N-8	1200	200*200*200	8	5	1	K type
FGL-12N-12	1200	200*200*300	12	6	1	K type
FGL-12N-27	1200	300*300*300	27	8	1	K type
FGL-12N-36	1200	300*300*400	36	10	3	K type
FGL-12N-64	1200	400*400*400	64	16	3	K type
FGL-12N-125	1200	500*500*500	125	25	3	K type
FGL-12N-216	1200	600*600*600	216	36	3	K type
FGL-12N-512	1200	800*800*800	512	64	3	K type
FGL-12N-729	1200	900*900*900	729	80	3	K type
FGL-12N-1000	1200	1000*1000*1000	1000	100	3	K type
Chamber size can be customized

Why Facerom's 1200℃ High Temperature Industrial Annealing Chamber Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost-efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our 1200℃ High Temperature Industrial Annealing Muffle Furnace, 1200C Industrial Annealing Chamber Furnace, contact us now to get a quote!
