Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12S / FMJ-14S
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1400℃VOLUME:1 ~ 1000L
HEATING ELEMENT:High Quality SiC Heating ElementFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Industrial Tempering Under 1400°C
HIGH LIGHT:vacuum muffle furnace, industrial chamber furnace

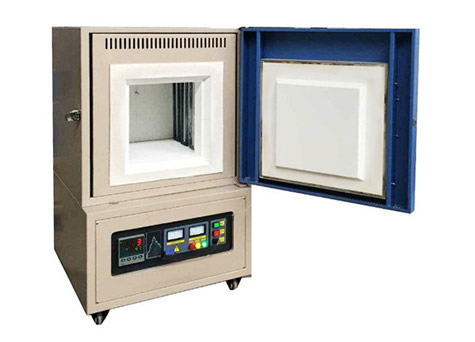

High Temperature 1400℃ Industrial Tempering Muffle Furnace, 1400C Industrial Tempering Chamber Furnace

Facerom's High Temperature 1400℃ Industrial Tempering Muffle Furnace, 1400C Industrial Tempering Chamber Furnace mainly used for production enterprises to do the high-temperature industrial tempering under 1400℃.

Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

Max working temperature: 1400℃
Volume: as per your order
High quality SiC heating element.
The upper door and the side door can be customized to keep the operator away from the heat source.
50 segments programmable and PID auto control
With over temperature alarm function

Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual
SiC heating element 2pcs

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Software
Furnace furniture as per your requirement.
Alumina crucible as per your requirement
Special design as per your requirement

High Temperature 1400℃ Industrial Tempering Muffle Furnace Technical Parameter

Model	Max temperature(°C)	Inner size (W *H * D) mm	Volume (L)	Power (KW)	Phase	Thermocouple
FGL-14S-1	1400	100*100*100	1	1	1	S type
FGL-14S-2	1400	120*120*130	2	2	1	S type
FGL-14S-3	1400	150*150*150	3	3	1	S type
FGL-14S-5	1400	150*150*200	5	4	1	S type
FGL-14S-8	1400	200*200*200	8	5	1	S type
FGL-14S-12	1400	200*200*300	12	7	1	S type
FGL-14S-27	1400	300*300*300	27	9	1	S type
FGL-14S-36	1400	300*300*400	36	11	3	S type
FGL-14S-64	1400	400*400*400	64	18	3	S type
FGL-14S-125	1400	500*500*500	125	27	3	S type
FGL-14S-216	1400	600*600*600	216	40	3	S type
FGL-14S-512	1400	800*800*800	512	70	3	S type
FGL-14S-729	1400	900*900*900	729	88	3	S type
FGL-14S-1000	1400	1000*1000*1000	1000	110	3	S type
Chamber size can be customized

Why Facerom's High Temperature 1400℃ Industrial Tempering Chamber Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our High Temperature 1400℃ Industrial Tempering Muffle Furnace, 1400C Industrial Tempering Chamber Furnace, contact us now to get a quote!
