Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL / FMJ
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union

Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:Up To 1200℃TYPE:Top Loading
VOLUME:As Per Your OrderHEATING ELEMENT:Nickel-chromium Alloy Heating Tape
FURNACE CHAMBER:Refractory BrickTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
VOTAGE:AC 380V 50/60 HzMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
APPLICATION:Alumina Melting / Metal Melting
HIGH LIGHT:industrial metal melting furnace, industrial chamber furnace

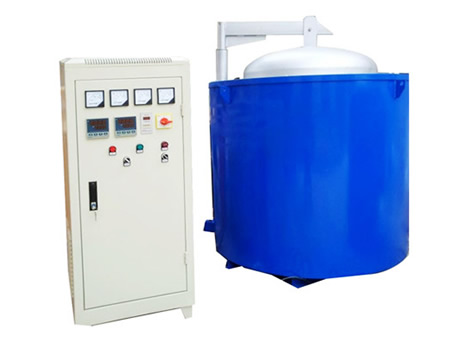

Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace, Industrial Top Loading Muffle Furnace

Facerom's Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace, Industrial Top Loading Muffle Furnace is mainly used for melting and smelt of low melting point non-ferrous metals and alloy, such as Aluminum, Zinc, Tin, Copper, etc.

Furnace body:
The outer shell is made from high quality carbon steel in cylinder shape, furnace chamber is built with over lightweight refractory brick in well type, the space between furnace shell and furnace chamber is filled with aluminosilicate refractory fibers.

Heating element:
The heating element is Nickel-chromium alloy heating tape, Resting on the brick around the furnace, reinforced by Jack put brick, avoiding the heating element to fall out when Tilting, easier to change than heating resistance.

Crucible:
The crucible is made from graphite, put in the center of the furnace chamber, the melted material can keep warm in the crucible.

Tilting equipment (optional)
The tilting equipment is mechanical tilting, tilting the metallic solution automatically.

Let out hole:
There is a let out hole in the the lower part of the front, leting out the liquor, protecting the heating element and furnace chamber.

Max temperatue: 1200℃
Furnace chamber: Top Loading
Volume: as per your order
Heating elements: Nickel-chromium alloy heating tape
50 segments programmable and PID auto control
With over temperature alarm function

Standard Spares:
High temperature gloves
Crucible clip
Operation Manual

Optional Spares:
Software
Furnace furniture
Alumina crucible

Chamber size: as per your order

Why Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our Top Loading 1200℃ Aluminum / Metal Melting Crucible Furnace, Industrial Top Loading Muffle Furnace, contact us now to get a quote!
