Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

APPLICATION:Coal Ash TestMAX TEMPERATURE:1200℃
HEATING ELEMENT:High Quality Resistance WireTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
ALARM:With Over Temperature Alarm FunctionCOOLING:Cooling Fan Can Reduce The Temperature Of The Casing
VOTAGE:AC 110V Or AC 220VMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
GAS VENT:Yes
HIGH LIGHT:electric muffle furnace, programmable muffle furnace

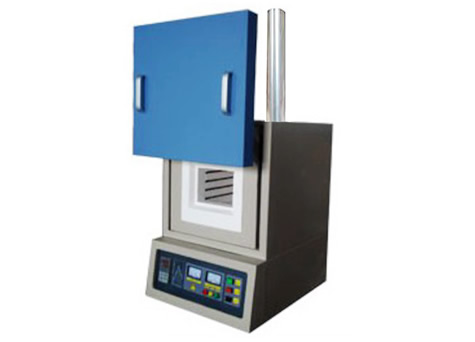

Coal Ash Muffle Furnace, Coal Ash Testing Furnace

This Facerom Furnace lab coal ash muffle furnace is designed specifically to do coal ash testing.

One of the most common applications for Facerom Furnace lab muffle furnace is to heat combustible samples in order to analyze the resulting ash residue.  Facerom ashing furnace with characteristics is tailored to ashing and burn-off applications.

The max. temperature is 1200°C with working volumes of up to 64 liters. If you require a coal ash testing furnace integrated afterburner to remove noxious fumes from materials such as biomass then Facerom Furnace Coal Ash Furnace could be perfect for your needs.

1100 °C maximum operating temperatures
Programmable PID auto Control
Large floor area allows for large numbers of samples
Ideal for ashing foods, plastics, coal & other hydrocarbon materials
Wire elements are protected from chemical & mechanical damage by a hard-wearing alumina-based liner
Gas vent & Tall chimney give airflow of 4 to 5 changes per minute
special for coal ash testing

Standard Parts:
High-temperature gloves
Crucible clip
Operation Manual

Optional Parts:
7-inch touch screen
Observation Hole
Furnace Furniture
Alumina crucible
Software

Coal Ash Muffle Furnace Technical Parameter (1200 type)

Model	Max temperature(°C)	Inner size (W *H * D) mm	Volume (L)	Power (KW)	Phase	Thermocouple
FGL-12N-1	1200	100*100*100	1	0.8	1	K type
FGL-12N-2	1200	120*120*130	2	1.2	1	K type
FGL-12N-3	1200	150*150*150	3	2.5	1	K type
FGL-12N-5	1200	150*150*200	5	3	1	K type
FGL-12N-8	1200	200*200*200	8	5	1	K type
FGL-12N-12	1200	200*200*300	12	6	1	K type
FGL-12N-27	1200	300*300*300	27	8	1	K type
FGL-12N-36	1200	300*300*400	36	10	3	K type
FGL-12N-64	1200	400*400*400	64	16	3	K type
Chamber size can be customized

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you are interested in our Coal Ash Muffle Furnace, Coal Ash Testing Furnace,  contact us now to get a quote!
