Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1700℃CHAMBER SIZE:Φ80X200mm
HEATING ELEMENT:High Quality MoSi2 Heating ElementFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
APPLICATION:Glass MeltingALUMINA CRUCIBLE:Φ80X200mm
VOLTAGE:110V Or 220V 50/60HZ
HIGH LIGHT:electric muffle furnace, programmable muffle furnace

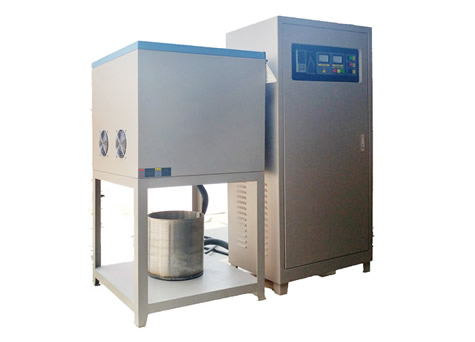

High Temperature 1700℃ Lab Glass Melting Furnace

This High Temperature 1700℃ Lab Glass Melting Furnace is a special design for glass melting.

Facerom muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

Max working temperature 1700℃
Chamber Size: Φ80X200mm
High quality MoSi2 heating element.
The upper door and the side door can be customized to keep the operator away from the heat source.
50 segments programmable and PID auto control
With over temperature alarm function

Standard Spares:
High temperature gloves
Crucible clip
Operation Manual
MoSi2 heating element 2pcs
Alumina Crucible

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Furnace furniture
Alumina crucible
Software


Lab Glass Melting Furnace Technical Parameter (1700 type):

Model	Max temperature (°C)	Inner size (W *H * D) mm	Volume (L)	Power (KW)	Thermocouple
BR	1700	Φ80X200mm	1	1	B type
Chamber size can be customized

Why Us?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you are interested in our High Temperature 1700℃ Lab Glass Melting Furnace, contact us now to get a quote!
