1400℃ Electric Lab Bench-top Muffle Furnace, 8 Liter Chamber Furnace
  • Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12S / FMJ-14S
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1400℃VOLUME:1 ~ 8L
HEATING ELEMENT:High Quality SiC Heating ElementFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Lab
HIGH LIGHT:programmable muffle furnace, heat treatment muffle furnace

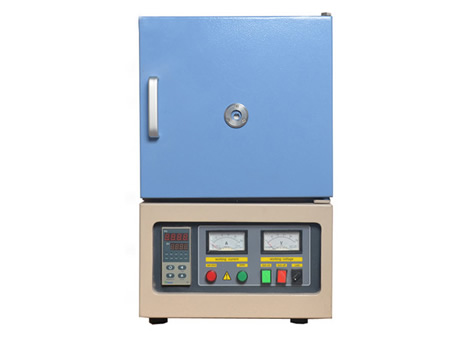

1400℃ Electric Lab Bench-top Muffle Furnace, 8 Liter Chamber Furnace

Facerom's 1400℃ Electric Lab Bench-top Muffle Furnace, 8 Liter Chamber Furnace is mainly used for lab testing.

Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

Max working temperature RT~1400℃
Volume 1~8L
High quality SiC heating element.
The upper door and the side door can be customized to keep the operator away from the heat source.
50 segments programmable and PID auto control
With over temperature alarm function

Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual
SiC heating element 2pcs

Optional Spares:
7-inch touch screen
Gas Vent
Observation Hole
Furnace Furniture
Alumina crucible
Software

1400℃ Lab Bench-top Muffle Furnace Technical Parameter:

Model Max temperature(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
FGL-14S-1 1400 100*100*100 1 1 1 S type
FGL-14S-2 1400 120*120*130 2 2 1 S type
FGL-14S-3 1400 150*150*150 3 3 1 S type
FGL-14S-5 1400 150*150*200 5 4 1 S type
FGL-14S-8 1400 200*200*200 8 5 1 S type
Chamber size can be customized


Why Us Facerom's 1400℃ Lab Bench-top Muffle Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our 1400℃ Electric Lab Bench-top Muffle Furnace, 8 Liter Chamber Furnace, contact us now to get a quote.
