- Introduction
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-14S / FMJ-14S
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month
MAX WORKING TEMPERATURE:1400℃VOLUME:1 ~ 1000L
HEATING ELEMENT:High Quality SiC Heating ElementFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Labs
HIGH LIGHT:electric muffle furnace, programmable muffle furnace
1400℃ Lab Programmable Muffle Furnace, 1400C Programmable Chamber Furnace
Facerom's 1400℃ Lab Programmable Muffle Furnace, 1400C Programmable Chamber Furnace is a 51 segments programmable lab muffle furnace.
Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

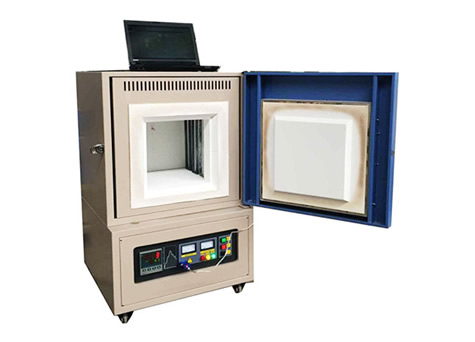

SiC Heating Element Digital Muffle Furnace 1400 C High Temperature Strength Structured 0
Max working temperature RT~1400℃
Volume 1~1000L
High quality SiC heating element.
The upper door and the side door can be customized to keep the operator away from the heat source.
50 segments programmable and PID auto control
With over temperature alarm function
Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual
SiC heating element 2pcs
Optional Spares:
7-inch touch screen
Gas Vent
Observation Hole
Furnace Furniture
Alumina crucible
Software
1400℃ Lab Programmable Muffle Furnace Technical Parameter:
Model | Max temperature(°C) |
Inner size (W *H * D) mm |
Volume (L) |
Power (KW) |
Phase | Thermocouple |
FGL-14S-1 | 1400 | 100*100*100 | 1 | 1 | 1 | S type |
FGL-14S-2 | 1400 | 120*120*130 | 2 | 2 | 1 | S type |
FGL-14S-3 | 1400 | 150*150*150 | 3 | 3 | 1 | S type |
FGL-14S-5 | 1400 | 150*150*200 | 5 | 4 | 1 | S type |
FGL-14S-8 | 1400 | 200*200*200 | 8 | 5 | 1 | S type |
FGL-14S-12 | 1400 | 200*200*300 | 12 | 7 | 1 | S type |
FGL-14S-27 | 1400 | 300*300*300 | 27 | 9 | 1 | S type |
FGL-14S-36 | 1400 | 300*300*400 | 36 | 11 | 3 | S type |
FGL-14S-64 | 1400 | 400*400*400 | 64 | 18 | 3 | S type |
FGL-14S-125 | 1400 | 500*500*500 | 125 | 27 | 3 | S type |
FGL-14S-216 | 1400 | 600*600*600 | 216 | 40 | 3 | S type |
FGL-14S-512 | 1400 | 800*800*800 | 512 | 70 | 3 | S type |
FGL-14S-729 | 1400 | 900*900*900 | 729 | 88 | 3 | S type |
FGL-14S-1000 | 1400 | 1000*1000*1000 | 1000 | 110 | 3 | S type |
Chamber size can be customized |
Why Facerom's 1400℃ Lab Programmable Chamber Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory
Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.
Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test
If you're interested in our 1400℃ Lab Programmable Muffle Furnace, 1400C Programmable Chamber Furnace, contact us now to get a quote!
-
